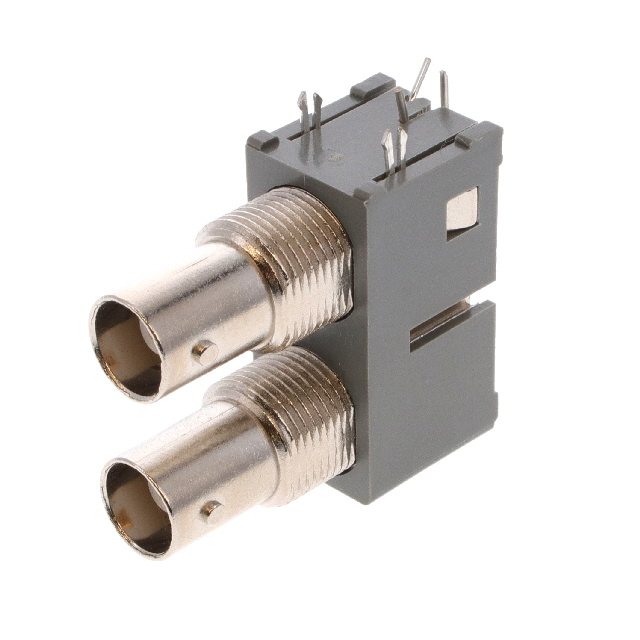

364M2595
Or copy the link below:
- Mfr.Part #
- 364M2595
- Manufacturer
- Winchester Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC JACK R/A 50 OHM PCB
- Stock
- 652
- In Stock ：
- 652
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Winchester Electronics
- Product Category :
- Coaxial Connector (RF) Assemblies
- Operating Temperature :
- -40°C~165°C
- Dielectric Material :
- Polypropylene (PP)
- Filter Feature :
- No
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Silver
- Body Finish :
- Nickel
- Total Number of Contacts :
- 2
- Factory Lead Time :
- 16 Weeks
- Panel Mount :
- No
- Mounting Feature :
- Bulkhead - Front Side Nut
- Connector Type :
- Jack, Female Socket
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Termination :
- Solder
- Body Material :
- Brass
- Ingress Protection :
- Weatherproof
- Insertion Loss :
- 0.2dB
- Packaging :
- Tray
- Reliability :
- COMMERCIAL
- Center Contact Material :
- Phosphor Bronze
- HTS Code :
- 8536.69.40.10
- Operating Frequency-Max :
- 1GHz
- Impedance :
- 50Ohm
- Series :
- Dual 364
- Number of Ports :
- 2
- Center Contact Plating :
- Gold
- Contact Style :
- COAX
- Mounting Option 1 :
- LOCKING
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Voltage - Rated :
- 500V
- MIL Conformance :
- No
- Contact Resistance :
- 3mOhm
- Mating Cycles :
- 500
- IEC Conformance :
- No
- DIN Conformance :
- No
- ECCN Code :
- EAR99
- Published :
- 2013
- Frequency (Max) :
- 1GHz
- Option :
- GENERAL PURPOSE
- Connector Style :
- BNC
- Fastening Type :
- Bayonet Lock
- Datasheets
- 364M2595
364M2595 Documents
Jack, Female Socket Bayonet Lock 50Ohm Tray BNC Solder 2 Port Polypropylene (PP) -40°C~165°C
364M2595 Overview
Packaging for this item is Jack, Female Socket.Panel Mount, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Dual 364 Series.The device has 2 ports for managing a variety of tasks.It operates at an operating temperature of -40°C~165°C.
364M2595 Features
Dual 364 series
364M2595 Applications
There are a lot of Winchester Interconnect
364M2595 Coaxial Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
