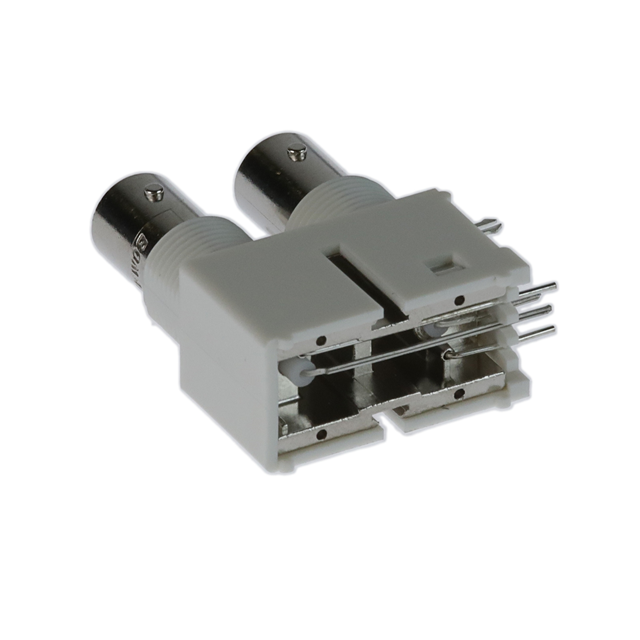

364A2795
Or copy the link below:
- Mfr.Part #
- 364A2795
- Manufacturer
- Winchester Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC JACK R/A 75 OHM PCB
- Stock
- 39
- In Stock ：
- 39
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Winchester Electronics
- Product Category :
- Coaxial Connector (RF) Assemblies
- Mounting Feature :
- Bulkhead - Front Side Nut
- Reach Compliance Code :
- Unknown
- Voltage - Rated :
- 500V
- Contact Style :
- COAX
- Feature :
- Board Lock, Isolated
- Operating Frequency-Max :
- 1GHz
- ECCN Code :
- EAR99
- Connector Type :
- Jack, Female Socket
- Dielectric Material :
- Polypropylene (PP)
- Total Number of Contacts :
- 2
- Factory Lead Time :
- 16 Weeks
- Frequency (Max) :
- 1GHz
- Mating Cycles :
- 500
- Packaging :
- Tray
- Published :
- 2013
- Contact Termination :
- Solder
- Housing Color :
- Silver, White
- Body Material :
- Zinc Die Cast
- Insertion Loss :
- 0.2dB
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Center Contact Plating :
- Gold
- Series :
- Dual 364
- Connector Style :
- BNC
- Mounting Option 1 :
- LOCKING
- Reliability :
- COMMERCIAL
- Contact Resistance :
- 3mOhm
- Center Contact Material :
- Phosphor Bronze
- Number of Ports :
- 2
- Operating Temperature :
- -55°C~105°C
- Impedance :
- 75Ohm
- Body Finish :
- Nickel
- Ingress Protection :
- Weatherproof
- RoHS Status :
- RoHS Compliant
- HTS Code :
- 8536.69.40.10
- Fastening Type :
- Bayonet Lock
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Datasheets
- 364A2795
364A2795 Documents
Jack, Female Socket Bayonet Lock 75Ohm Tray BNC Solder 2 Port Polypropylene (PP) -55°C~105°C
364A2795 Overview
The packaging contains Jack, Female Socket.This device is mounted in the Panel Mount, Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the Dual 364 Series.The device has 2 ports that can be used to manage a variety of tasks.There are a number of advantages to its Board Lock, Isolated feature.As a result, the device runs at -55°C~105°C Operating Temperature.
364A2795 Features
Dual 364 series
364A2795 Applications
There are a lot of Winchester Interconnect
364A2795 Coaxial Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
