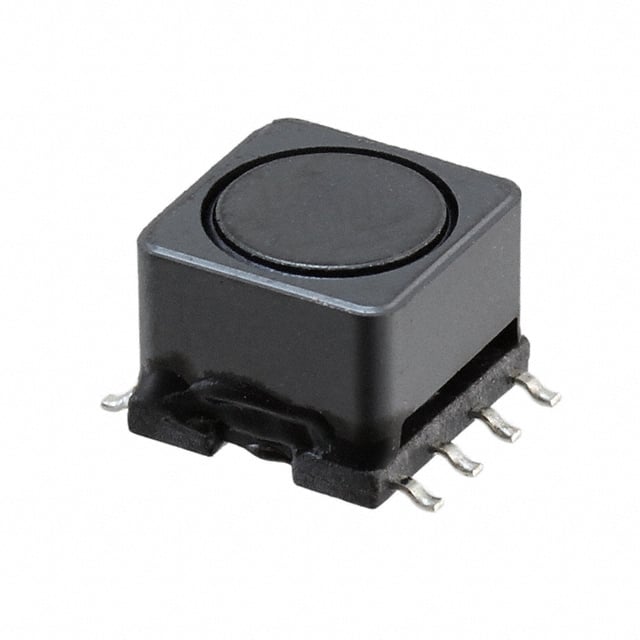

3632B153LL
Or copy the link below:
- Mfr.Part #
- 3632B153LL
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 15MH 75MA 40 OHM SMD
- Stock
- 28,476
- In Stock ：
- 28,476
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Fixed Inductors
- DC Resistance (DCR) :
- 40Ohm Max
- Mounting Type :
- Surface Mount
- Inductance :
- 15mH
- Shielding :
- Shielded
- Q @ Freq :
- 130 @ 79.6kHz
- HTS Code :
- 8504.50.80.00
- Number of Functions :
- 1
- Size / Dimension :
- 0.413Lx0.374W 10.50mmx9.50mm
- Current Rating (Amps) :
- 75mA
- Quality Factor-Min (at L-nom) :
- 130
- Number of Terminations :
- 8
- Package / Case :
- Nonstandard
- Height Seated (Max) :
- 0.307 7.80mm
- Published :
- 2007
- Factory Lead Time :
- 35 Weeks
- Terminal Shape :
- Gull wing
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Terminal Placement :
- DUAL IN-LINE
- Rated Current-Max :
- 0.075A
- Operating Temperature :
- -25°C~105°C
- Inductor Type :
- GENERAL PURPOSE INDUCTOR
- Pbfree Code :
- yes
- Packaging :
- Tape and Reel (TR)
- Shape/Size Description :
- RECTANGULAR PACKAGE
- Series :
- 3632, Sigma Inductors
- Inductor Application :
- POWER INDUCTOR
- RoHS Status :
- RoHS Compliant
- Frequency - Self Resonant :
- 400kHz
- Material - Core :
- Ferrite
- Surface Mount :
- yes
- Tolerance :
- ±15%
- Inductance Frequency - Test :
- 1kHz
- Datasheets
- 3632B153LL
