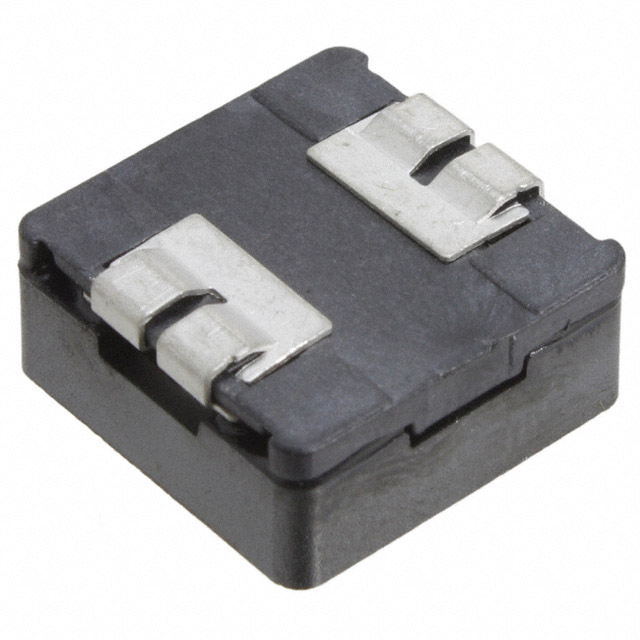

3631B2R5ML
Or copy the link below:
- Mfr.Part #
- 3631B2R5ML
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 2.5UH 6.2A 16 MOHM SMD
- Stock
- 13,197
- In Stock ：
- 13,197
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Fixed Inductors
- Test Frequency :
- 1kHz
- Current Rating :
- 6.2A
- DC Resistance (DCR) :
- 16mOhm Max
- Depth :
- 13mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Shielding :
- yes
- Operating Temperature :
- -25°C~105°C
- Mount :
- Surface Mount
- Published :
- 2007
- Max Current Rating :
- 6.2A
- Lead/Base Style :
- SMD/SMT
- RoHS Status :
- RoHS Compliant
- REACH SVHC :
- Unknown
- Terminal Placement :
- DUAL ENDED
- Composition :
- Wirewound
- Packaging :
- Tape and Reel (TR)
- Number of Terminations :
- 2
- Terminal Shape :
- ONE SURFACE
- Pbfree Code :
- yes
- ELV :
- Compliant
- Inductor Type :
- GENERAL PURPOSE INDUCTOR
- Series :
- 3631, Sigma Inductors
- Number of Functions :
- 1
- Max DC Current :
- 6.2A
- Resistance :
- 16mOhm
- Height :
- 5mm
- Shape/Size Description :
- RECTANGULAR PACKAGE
- Q Factor :
- 22
- Height Seated (Max) :
- 0.256 6.50mm
- Size / Dimension :
- 0.500Lx0.500W 12.70mmx12.70mm
- Tolerance :
- ±20%
- Inductor Application :
- POWER INDUCTOR
- Mounting Type :
- Surface Mount
- Package / Case :
- Nonstandard
- RMS Current (Irms) :
- 6.2A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Inductance Tolerance :
- 20%
- ECCN Code :
- EAR99
- Number of Pins :
- 2
- HTS Code :
- 8504.50.80.00
- Quality Factor-Min (at L-nom) :
- 22
- Factory Lead Time :
- 35 Weeks
- Material - Core :
- Ferrite
- Inductance :
- 2.5μH
- Datasheets
- 3631B2R5ML
