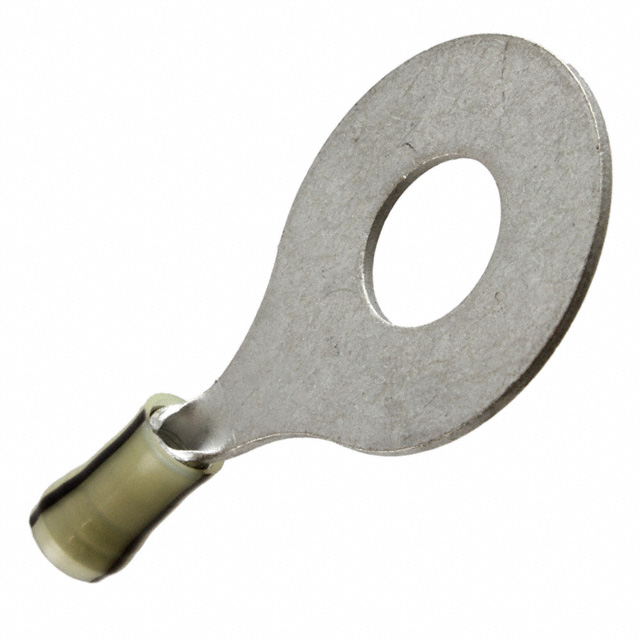

36203
Or copy the link below:
- Mfr.Part #
- 36203
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #1/2
- Stock
- 1,007
- In Stock ：
- 1,007
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Contact Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Length - Overall :
- 2.219 56.36mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Crimp
- Voltage - Rated AC :
- 300V
- Contact Material :
- Copper
- Wire Gauge :
- 14-16 AWG
- Published :
- 2008
- Insulation :
- Insulated
- Feature :
- Heavy Duty, Serrated Termination
- Depth :
- 31.75mm
- ELV :
- Compliant
- Wire Cross Section :
- 2.62 mm2
- HTS Code :
- 8536.90.40.00
- Mount :
- Free Hanging
- Wire Gauge (Min) :
- 16 AWG
- Number of Holes :
- 1
- Insulation Diameter :
- 0.150 ~ 0.250 (3.81mm ~ 6.35mm)
- Stud Diameter :
- 13.08 mm
- Mounting Type :
- Free Hanging (In-Line)
- ECCN Code :
- EAR99
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Width - Outer Edges :
- 1.250 31.75mm
- Length :
- 56.36mm
- Terminal Gender :
- FEMALE
- Terminal Type :
- Circular
- Series :
- PIDG
- Factory Lead Time :
- 4 Weeks
- Thickness :
- 0.048 1.22mm
- Sealable :
- No
- Material - Insulation :
- Polyamide (PA), Nylon
- Lead Free :
- Not Applicable
- Plating Thickness :
- 2.54μm
- Color :
- Yellow, Black Stripe
- Wire/Cable Diameter :
- 6.35 mm
- Stud/Tab Size :
- 1/2 Stud
- Terminal and Terminal Block Type :
- RING TERMINAL
- Heavy Duty :
- yes
- Material Thickness :
- 1.22mm
- Wire Gauge (Max) :
- 14 AWG
- Tongue Thickness :
- 1.22mm
- Packaging :
- Bulk
- Diameter - Inside :
- 6.43 mm
- Datasheets
- 36203
