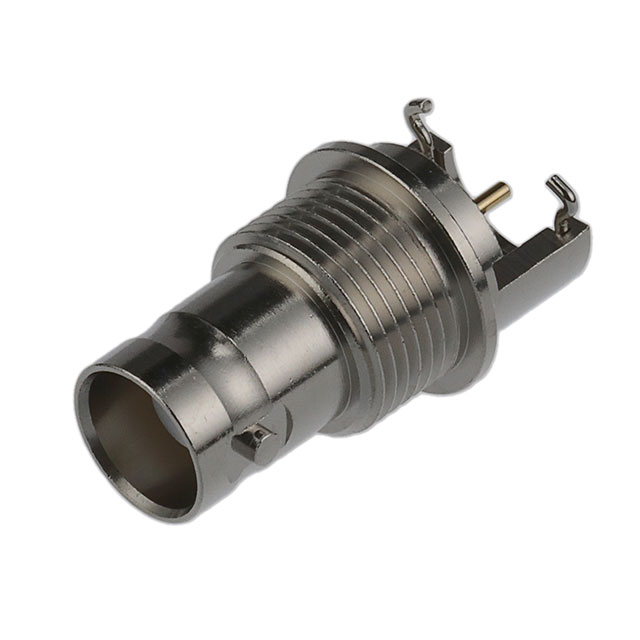

361V504EFT
Or copy the link below:
- Mfr.Part #
- 361V504EFT
- Manufacturer
- Winchester Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC JACK STR 50OHM EDGE MNT
- Stock
- 924
- In Stock ：
- 924
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Winchester Electronics
- Product Category :
- Coaxial Connector (RF) Assemblies
- Published :
- 2013
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 500V
- Number of Ports :
- 1
- ECCN Code :
- EAR99
- Connector Type :
- Jack, Female Socket
- Center Contact Plating :
- Gold
- Factory Lead Time :
- 16 Weeks
- Body Material :
- Brass
- Frequency (Max) :
- 4GHz
- Fastening Type :
- Bayonet Lock
- Packaging :
- Tray
- Insertion Loss :
- 0.2dB
- Operating Temperature :
- -65°C~165°C
- Ingress Protection :
- Weatherproof
- Mating Cycles :
- 500
- Connector Style :
- BNC
- RoHS Status :
- RoHS Compliant
- Mounting Feature :
- Bulkhead - Front Side Nut
- Body Finish :
- Nickel
- Reach Compliance Code :
- Unknown
- Mounting Type :
- Board Edge, End Launch; Panel Mount
- Housing Color :
- Silver
- Impedance :
- 50Ohm
- Series :
- V-Bite®
- Contact Termination :
- Solder
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Datasheets
- 361V504EFT
Jack, Female Socket Bayonet Lock 50Ohm Tray BNC Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
361V504EFT Overview
A Jack, Female Socket package is included with it.Board Edge, End Launch; Panel Mount indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the V-Bite® Series.With 1 ports, it is capable of managing a wide range of tasks.Operating temperature is set to -65°C~165°C.
361V504EFT Features
V-Bite® series
361V504EFT Applications
There are a lot of Winchester Interconnect
361V504EFT Coaxial Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
