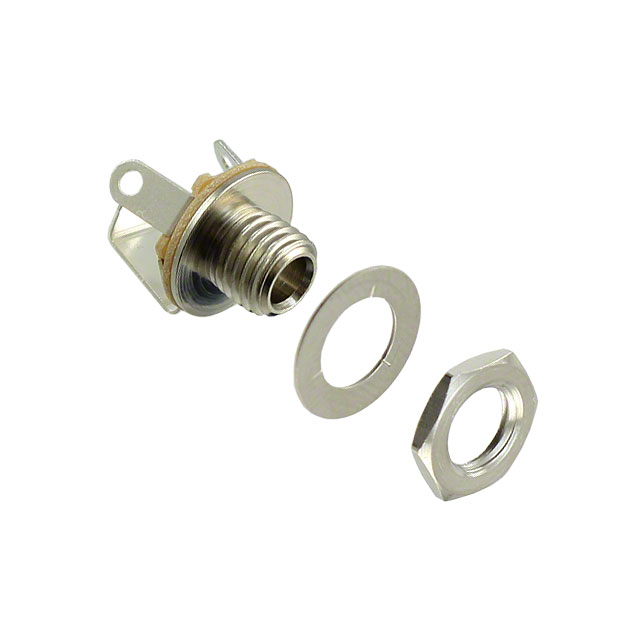

35PM1
- Mfr.Part #
- 35PM1
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN JACK MONO 3.5MM PNL MNT
- Stock
- 1,326
- In Stock :
- 1,326
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Published :
- 2006
- Mounting Type :
- Panel Mount
- Lead Free :
- Lead Free
- Package / Case :
- Metal
- Contact Plating :
- Nickel, Tin
- Contact Material :
- COPPER ALLOY
- Max Voltage Rating (DC) :
- 48V
- Number of Poles :
- 2
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- ECCN Code :
- EAR99
- Gender :
- FEMALE
- Factory Lead Time :
- 8 Weeks
- Contact Material - Plating :
- Tin
- Option :
- GENERAL PURPOSE
- Internal Switch(s) :
- Does Not Contain Switch
- RoHS Status :
- ROHS3 Compliant
- Number of Positions/Contacts :
- 2 Conductors, 2 Contacts
- Orientation :
- Straight
- Body Color :
- Silver
- Number of Ports :
- 1
- Contact Finish - Mating :
- NOT SPECIFIED
- DIN Conformance :
- No
- Series :
- 35PM
- Mount :
- Panel
- Connector Type :
- Phone Jack
- Number of Terminations :
- 2
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Panel Hole Size :
- 0.250 6.35mm
- Feature :
- Mounting Hardware, Thread Lock
- Termination :
- Solder Eyelet(s)
- Max Current Rating :
- 25A
- Pbfree Code :
- yes
- Voltage - Rated :
- 48VDC
- Signal Lines :
- Mono
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Material :
- COPPER ALLOY
- MIL Conformance :
- No
- Current Rating :
- 250mA
- IEC Conformance :
- No
- Housing Material :
- COPPER ALLOY
- Shielding :
- Unshielded
- Actual Diameter :
- 0.142 (3.60mm)
- Packaging :
- Bulk
- Thread Size :
- 1/4-32
- Datasheets
- 35PM1
