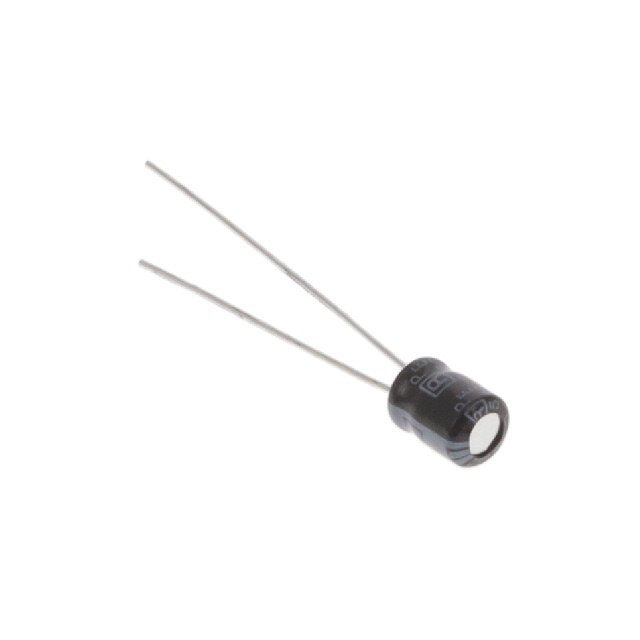

35MS52R2MEFC4X5

Manufacturer :

Rubycon

Product Category :

Aluminum Electrolytic Capacitors

Lifetime @ Temp :

1000 Hrs @ 85°C

Dielectric Material :

ALUMINUM (WET)

Number of Terminations :

2

JESD-609 Code :

e3

Terminal Finish :

Tin (Sn)

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Tolerance :

±20%

Pbfree Code :

yes

Factory Lead Time :

16 Weeks

Polarization :

Polar

Operating Temperature :

-40°C~85°C

ECCN Code :

EAR99

Size / Dimension :

0.157Dia 4.00mm

Length :

5mm

Packaging :

Bulk

Mounting Type :

Through Hole

Rated (DC) Voltage (URdc) :

35V

Surface Mount :

No

Ripple Current @ Low Frequency :

9mA @ 120Hz

Package / Case :

Radial, Can

Capacitance :

2.2μF

Tan Delta :

0.14

Diameter :

4mm

Reach Compliance Code :

Compliant

Terminal Pitch :

1.5mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Applications :

GENERAL PURPOSE

RoHS Status :

RoHS Compliant

Height Seated (Max) :

0.256 6.50mm

Leakage Current :

0.003mA

Ripple Current @ High Frequency :

13.5mA @ 10kHz

Series :

MS5

Voltage - Rated :

35V

Terminal Shape :

Wire

Lead Spacing :

0.059 1.50mm
