35HDBNS
Or copy the link below:
- Mfr.Part #
- 35HDBNS
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG STEREO 3.5MM 3COND
- Stock
- 144
- In Stock ：
- 144
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Option :
- GENERAL PURPOSE
- Published :
- 2002
- Orientation :
- Straight
- Number of Ports :
- 1
- Number of Poles :
- 3
- MIL Conformance :
- No
- IEC Conformance :
- No
- Shielding :
- Unshielded
- Contact Plating :
- Nickel, Tin
- Max Voltage Rating (DC) :
- 140.25kV
- Contact Finish - Mating :
- Tin
- RoHS Status :
- ROHS3 Compliant
- Length :
- 43.18mm
- Mounting Type :
- Free Hanging (In-Line)
- Body Color :
- Silver, Black
- Termination :
- Solder
- Actual Diameter :
- 0.138 (3.50mm)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Max Current Rating :
- 4A
- Mount :
- Cable, Free Hanging
- Cable Opening :
- 0.175 (4.44mm)
- Max Operating Temperature :
- 66°C
- Mating Length/Depth :
- 0.560 14.20mm
- Voltage - Rated :
- 250VAC 140VDC
- JESD-609 Code :
- e3
- Lead Free :
- Lead Free
- Includes :

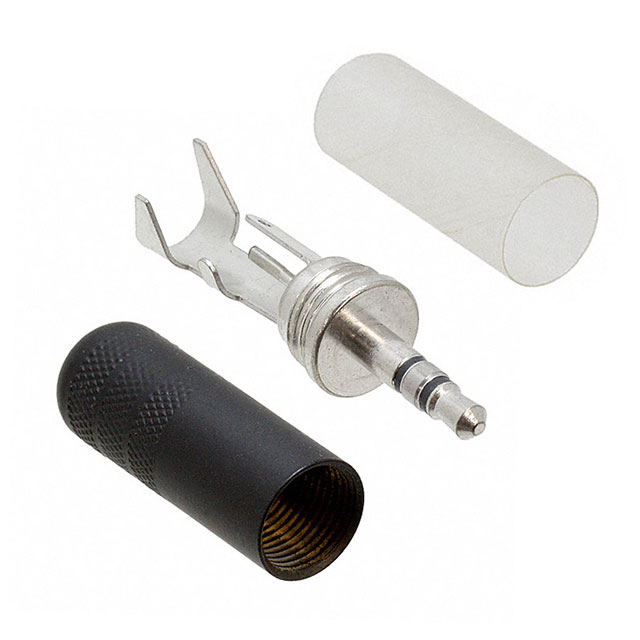

- 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
- Current Rating :
- 4A
- Min Operating Temperature :
- 0°C
- Number of Terminations :
- 3
- Series :
- 35HD
- Internal Switch(s) :
- Does Not Contain Switch
- Contact Material :
- Brass
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Contact Material - Plating :
- Tin
- Connector Type :
- Phone Plug
- Signal Lines :
- Stereo (3 Conductor, TRS)
- DIN Conformance :
- No
- Packaging :
- Bulk
- Color :
- Black
- Factory Lead Time :
- 8 Weeks
- Gender :
- Male
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- Datasheets
- 35HDBNS
