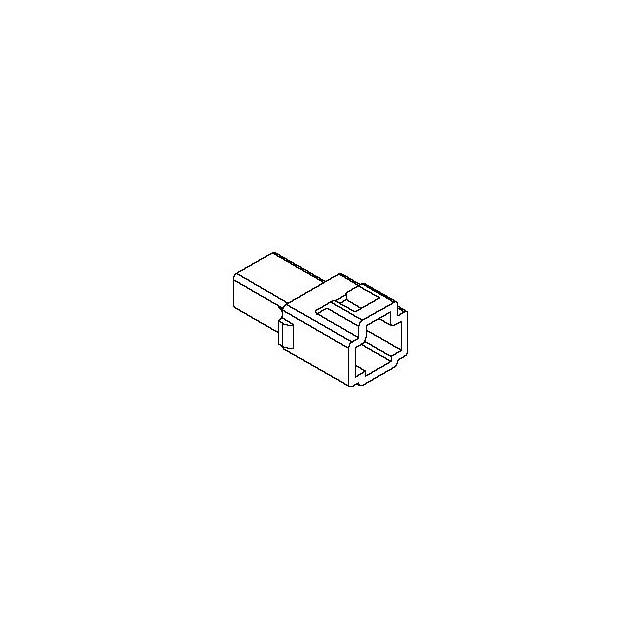

35955-0110

Manufacturer :

Molex

Product Category :

Unclassified

Number of Contacts :

1(POS)

Product Status :

Active

Reference Standard :

UL, CSA

Pitch (mm) :

Not Required(mm)

Body Orientation :

Straight

Product Length (mm) :

15.6(mm)

Manufacturer :

Molex

Gender :

PL

Reliability :

COMMERCIAL

Product Depth (mm) :

12.9(mm)

Withdrawl Force-Min :

4.8928 N

Mounting Style :

Straight

Mounting Option 2 :

LOCKING

Number of Contact Rows :

1

Termination Type :

Crimp

Subcategory :

Headers and Edge Type Connectors

Contact Arrangement :

S0P1

Contact Style :

SQ PIN-SKT

Contact Material :

Brass

Reach Compliance Code :

Compliant

Body/Shell Style :

Receptacle

Package :

Box

Product Height (mm) :

28.3(mm)

Mixed Contacts :

yes

Insulator Color :

White

Additional Feature :

ROHS/ELV COMPLIANT

Housing Color :

Natural

Body Depth :

1.114 inch

Body Breadth :

0.508 inch

Dielectric Withstanding Voltage :

1000VAC V

Contact Resistance :

3 mΩ

Contact Gender :

Male

Series :

*

Packaging :

Bag

Total Number of Contacts :

1

Type :

Housing

Mounting Type :

CABLE

Insulation Resistance :

100000000 Ω

Housing Material :

Polyamide 6/6

Connector Type :

BOARD CONNECTOR

Durability :

10 Cycles

Operating Temp Range :

-40C to 120C

Mounting Option 1 :

GUIDE SLOT

Contact Finish Termination :

TIN OVER COPPER
