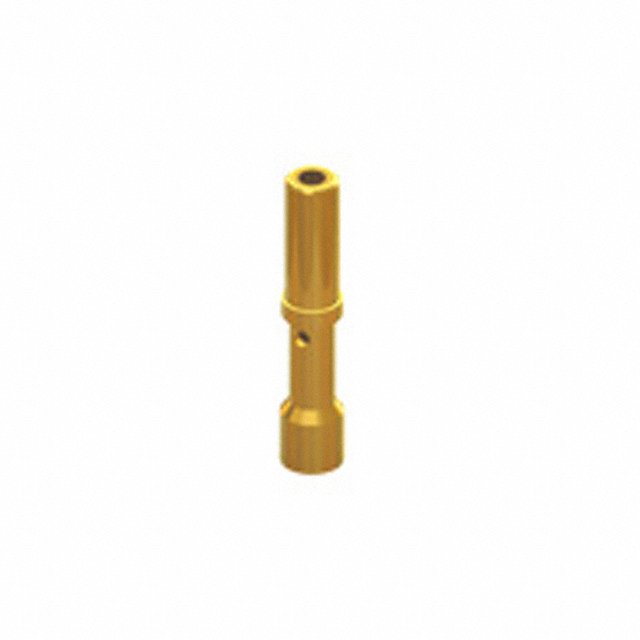

3594

Manufacturer :

Keystone Electronics Corp.

Product Category :

PC Pin Receptacles, Socket Connectors

ECCN Code :

EAR99

Contact Gender :

FEMALE

Rated Current (Signal) :

5A

Body Length or Diameter :

1.545 inch

Termination Type :

Solder

RoHS Status :

RoHS Compliant

Reference Standard :

UL

Voltage - Rated DC :

500V

Contact Finish Termination :

Gold

Insulation Material :

GLASS FILLED THERMOPLASTIC

Plating Thickness :

15μin

Operating Temperature (Min) :

-55°C

Body Depth :

0.787 inch

Contact Style :

RND PIN-SKT

Contact Pattern :

STAGGERED

Current Rating :

15A

Contact Resistance :

10MOhm

PCB Contact Row Spacing :

2.8448 mm

Insulator Color :

Black

Dielectric Withstanding Voltage :

1000VAC V

Body/Shell Style :

PLUG

Number Of PCB Rows :

2

Packaging :

Bulk

Body Breadth :

0.494 inch

Length - Termination :

0.125 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Weight :

248.568647g

Mating Contact Pitch :

0.109 inch

Contact Material :

Phosphor Bronze

Insulation Resistance :

5000000000Ohm

Contact Finish - Mating :

AU ON NI

Shell Finish :

Nickel

Total Number of Contacts :

15

Shell Material :

Steel

Mating Contact Row Spacing :

0.112 inch

Mount :

Holder

Reliability :

COMMERCIAL

HTS Code :

8536.69.40.30

Number of Rows :

2

Voltage - Rated :

500V

Operating Temperature (Max) :

125°C

PCB Contact Pattern :

STAGGERED
