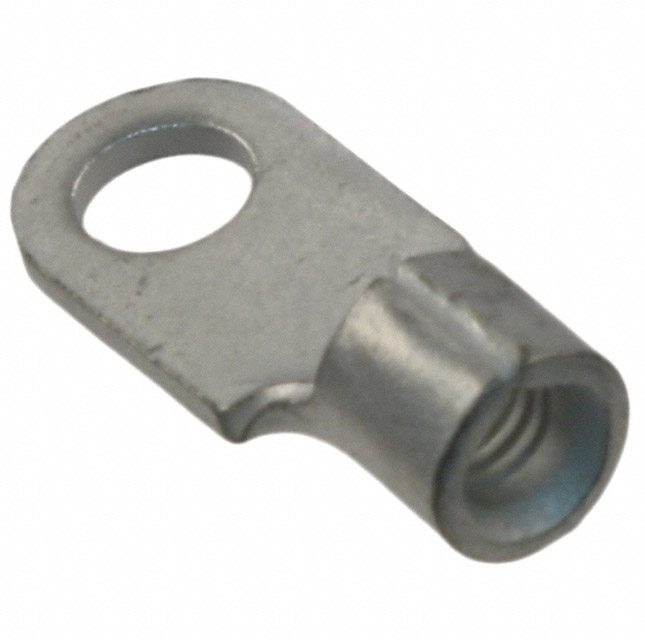

35684
Or copy the link below:
- Mfr.Part #
- 35684
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 12-14AWG #6 CRIMP
- Stock
- 200
- In Stock ：
- 200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Material Thickness :
- 970μm
- Diameter - Inside :
- 2.49 mm
- Stud Diameter :
- 3.68 mm
- Width - Outer Edges :
- 0.250 6.35mm
- Mounting Type :
- Free Hanging (In-Line)
- Tongue Thickness :
- 1.016mm
- ECCN Code :
- EAR99
- Thickness :
- 0.038 0.97mm
- Plating Thickness :
- 2.54μm
- Length - Overall :
- 0.654 16.61mm
- Series :
- Solistrand
- Length :
- 16.51mm
- Number of Holes :
- 1
- Packaging :
- Bulk
- Contact Material :
- Copper
- ELV :
- Compliant
- Insulated Wire Support :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Wire Gauge :
- 12-14 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Straight
- Insulation :
- Non-Insulated
- Lead Free :
- Not Applicable
- Width :
- 6.35mm
- HTS Code :
- 8536.90.40.00
- Published :
- 1997
- Termination :
- Crimp
- Terminal Type :
- Circular
- RoHS Status :
- RoHS Compliant
- Plating :
- Tin
- Factory Lead Time :
- 12 Weeks
- Wire/Cable Gauge :
- -12 AWG
- Terminal Gender :
- FEMALE
- Terminal and Terminal Block Type :
- RING TERMINAL
- Pbfree Code :
- yes
- Stud Size :
- M3.5
- Feature :
- Brazed Seam, Serrated Termination
- Stud/Tab Size :
- 6 Stud
- Datasheets
- 35684
