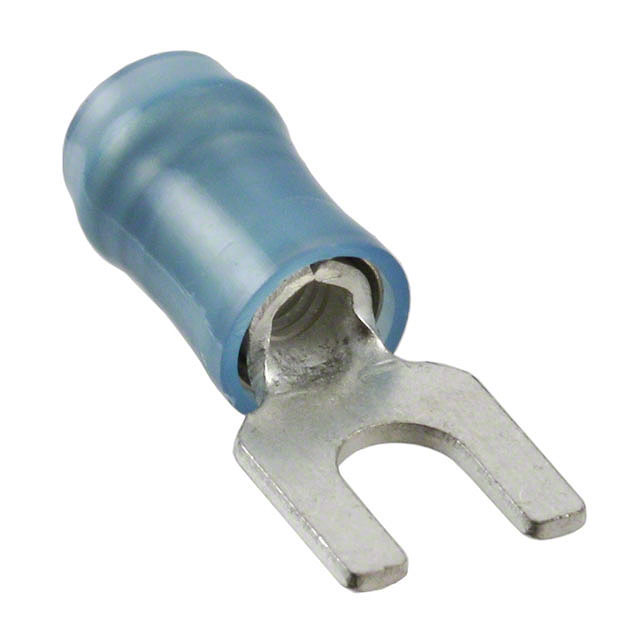

35559
Or copy the link below:
- Mfr.Part #
- 35559
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #6 BLU
- Stock
- 9,484
- In Stock ：
- 9,484
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Wire/Cable Diameter :
- 4.318 mm
- Material Thickness :
- 790μm
- Width :
- 7.54mm
- Body Material :
- Copper
- Government Qualified :
- No
- Thickness :
- 790μm
- Published :
- 1997
- Tongue Inside Opening :
- 0.145 (3.68mm)
- Contact Finish :
- Tin
- Insulation Diameter :
- 0.115 ~ 0.170 (2.92mm ~ 4.32mm)
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge (Max) :
- 16 AWG
- Sealable :
- No
- Length - Overall :
- 0.753 19.13mm
- Material - Insulation :
- Polyamide (PA), Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Ring Center to Termination :
- 0.203 5.16mm
- Tongue Thickness :
- 790μm
- Max Operating Temperature :
- 105°C
- Terminal Material :
- Copper
- Width - Outer Edges :
- 0.297 7.54mm
- Voltage - Rated :
- 300V
- Material :
- Copper
- Depth :
- 7.54mm
- Thread Size :
- M3.5
- Packaging :
- Bulk
- REACH SVHC :
- Unknown
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Orientation :
- Straight
- Diameter - Inside :
- 4.39 mm
- Gender :
- FEMALE
- Insulation :
- Insulated
- Length :
- 19.05mm
- Factory Lead Time :
- 12 Weeks
- Stud/Tab Size :
- 6 Stud
- Lead Free :
- Lead Free
- Stud Diameter :
- 3.68 mm
- Terminal Type :
- Standard
- Termination :
- Crimp
- Radiation Hardening :
- No
- Stud Size :
- M3.5
- Series :
- PIDG
- Contact Material :
- Copper
- Contact Plating :
- Tin
- Length - Termination :
- 0.404 10.26mm
- Plating Thickness :
- 2.54μm
- Wire Gauge (Min) :
- 14 AWG
- Body Plating :
- Tin
- Insulated Wire Support :
- yes
- Mount :
- Free Hanging
- Heavy Duty :
- No
- Wire Gauge :
- 14-16 AWG
- Feature :
- Serrated Termination
- Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Color :
- Blue
- Datasheets
- 35559
