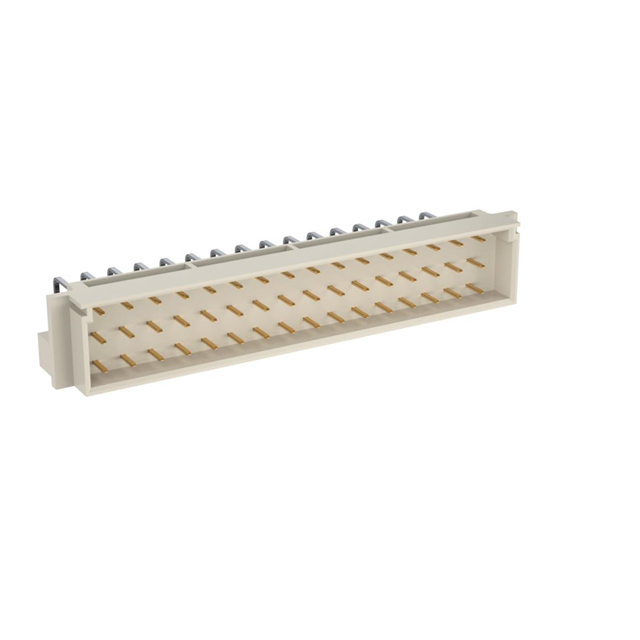

354872

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

Connector Type :

BOARD EURO CONNECTOR

Number of Contacts :

48(POS)

Total Number of Contacts :

48

Number of Contact Rows :

3

Contact Gender :

Male

Insulation Resistance :

1000000000000 Ω

Contact Style :

SQ PIN-SKT

Reliability :

COMMERCIAL

Dielectric Withstanding Voltage :

2200VAC V

Reference Standard :

UL

Termination Method :

Solder

Gender :

M

Mixed Contacts :

No

Contact Resistance :

15 mΩ

Number Of PCB Rows :

3

Pbfree Code :

yes

Mounting Style :

RIGHT ANGLE

Type :

DIN 41612

Polarization Key :

POLARIZED HOUSING

Name of Rows Loaded :

A,C,E

DIN Conformance :

yes

Terminal Pitch :

5.08 mm

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

BOARD

Body Breadth :

0.638 inch

Mating Contact Pitch :

0.1 inch

Mating Contact Row Spacing :

0.2 inch

Termination Type :

Solder

Option :

GENERAL PURPOSE

Product Height (mm) :

16.2(mm)

Body Orientation :

RIGHT ANGLE

Filter Feature :

No

IEC Conformance :

No

Body Depth :

0.892 inch

Product Length (mm) :

94(mm)

Durability :

400 Cycles

MIL Conformance :

No

Contact Material :

NOT SPECIFIED

Mounting Option 1 :

LOCKING

Terminal Length :

0.118 inch

PCB Contact Row Spacing :

5.08 mm

Pitch (mm) :

5.08(mm)

Reach Compliance Code :

Compliant

Product Depth (mm) :

22.96(mm)
