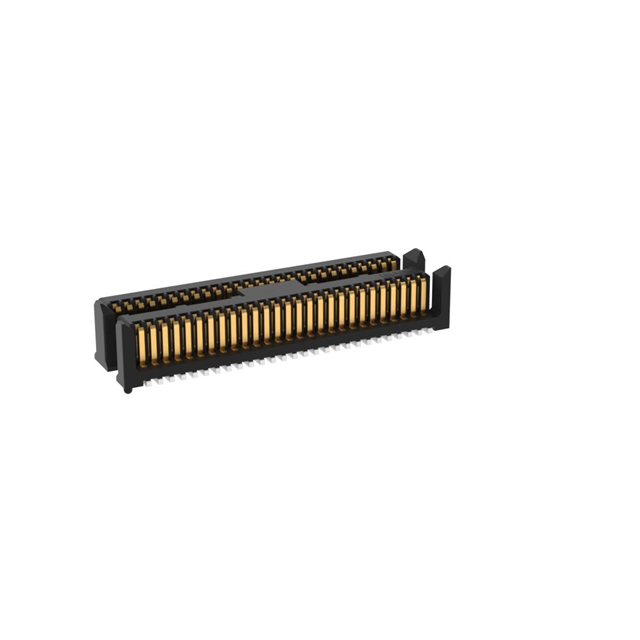

354000

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

HTS Code :

8536.69.40.40

Durability :

10 Cycles

Body Depth :

0.179 inch

Filter Feature :

No

Reliability :

COMMERCIAL

Contact Resistance :

10 MΩ

Reach Compliance Code :

Compliant

Mounting Style :

Straight

Contact Material :

NOT SPECIFIED

Terminal Pitch :

0.8 mm

Body/Shell Style :

Plug and Receptacle

Mixed Contacts :

No

Board Mounting Option :

PEG

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Insertion Force-Max :

2.0016 N

Mounting Option 1 :

LOCKING

PCB Contact Pattern :

RECTANGULAR

Manufacturer :

ERNI

ECCN Code :

EAR99

Connector Type :

BOARD STACKING CONNECTOR

Insulation Resistance :

10000000000 Ω

Pbfree Code :

yes

DIN Conformance :

No

IEC Conformance :

No

Contact Style :

BELLOWED TYPE

Withdrawl Force-Min :

2.0016 N

Option :

GENERAL PURPOSE

Total Number of Contacts :

54

Mounting Type :

BOARD

Mating Contact Pitch :

0.031 inch

Dielectric Withstanding Voltage :

700VAC V

Plating Thickness :

10u inch

Body Breadth :

0.285 inch

Contact Pattern :

RECTANGULAR

Termination Type :

Surface Mount

Subcategory :

Headers and Edge Type Connectors

Contact Gender :

Male

Reference Standard :

UL

Number Of PCB Rows :

2
