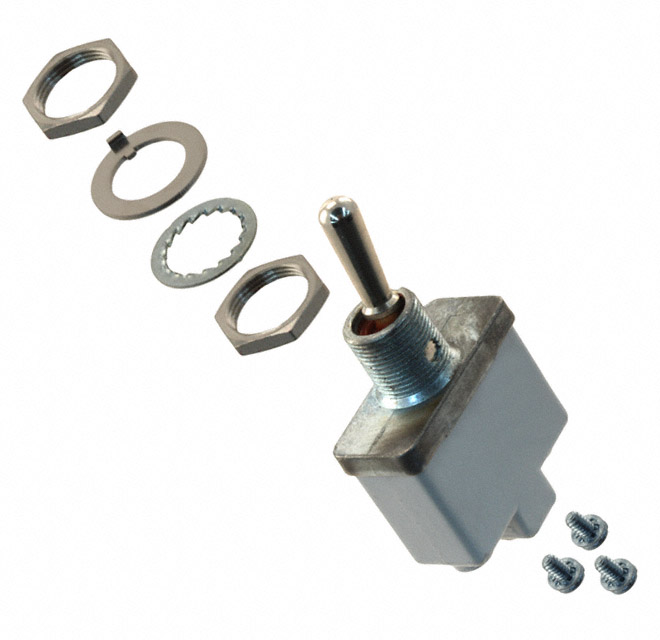

3536001N000

Share

Or copy the link below:

Mfr.Part #
3536001N000
Manufacturer
APEM Inc.
Package / Case
125
Datasheet
Download
Description
SWITCH TOGGLE SPDT 20A 125V
Stock
114
In Stock :
114

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
APEM Inc.
Product Category :
Number of Poles :
1
Series :
3500
Contact Resistance :
10MOhm
Ingress Protection :
IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Voltage - Rated DC :
28V
Bushing Thread :
15/32-32
Termination :
Screw
Circuit :
SPDT
HTS Code :
8536.50.90.65
RoHS Status :
ROHS3 Compliant
Orientation :
Straight
Ratings :
Dust Tight, IP67, Waterproof
Package / Case :
125
Throw Configuration :
SPDT, SPST
Switch Function :
On-On
Actuator Length :
17.50mm
Illumination :
Non-Illuminated
Bushing Length :
0.449 inch
Current Rating (Amps) :
20A AC 15A DC
Sealing :
ENVIRONMENTALLY SEALED; IP67; IP64
Max Voltage Rating (AC) :
250V
Actuator Material :
Brass, Nickel Plated
Actuator Type :
Standard Round
Mount :
Bushing, Panel
Lead Free :
Lead Free
Electrical Life :
10,000 Cycles
JESD-609 Code :
e4
Dielectric Withstanding Voltage :
3000VRMS V
Max Voltage Rating (DC) :
28V
Pbfree Code :
yes
Number of Positions :
2
Current Rating :
15A
Panel Cutout Dimensions :
Circular - 12.20mm Dia
Factory Lead Time :
9 Weeks
Mounting Type :
Panel Mount
Contact Material :
Silver
Termination Style :
Screw Terminal
Packaging :
Bulk
Voltage - Rated AC :
125V
Contact Current Rating :
15A
ECCN Code :
EAR99
Mechanical Life :
40000 cycles
Switch Type :
TOGGLE SWITCH
Operating Temperature :
-40°C~85°C
Introducing APEM Inc. 3536001N000 from Chip IC,where excellence meets affordability. This product stands out with its Circuit:SPDT, Package / Case:125, Mounting Type:Panel Mount, Operating Temperature:-40°C~85°C, 3536001N000 pinout, 3536001N000 datasheet PDF, 3536001N000 amp .Beyond APEM Inc. 3536001N000 ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

APEM Inc. 3536001N000


3536001N000 datasheet pdf and Toggle Switches product details from APEM Inc. stock available at
