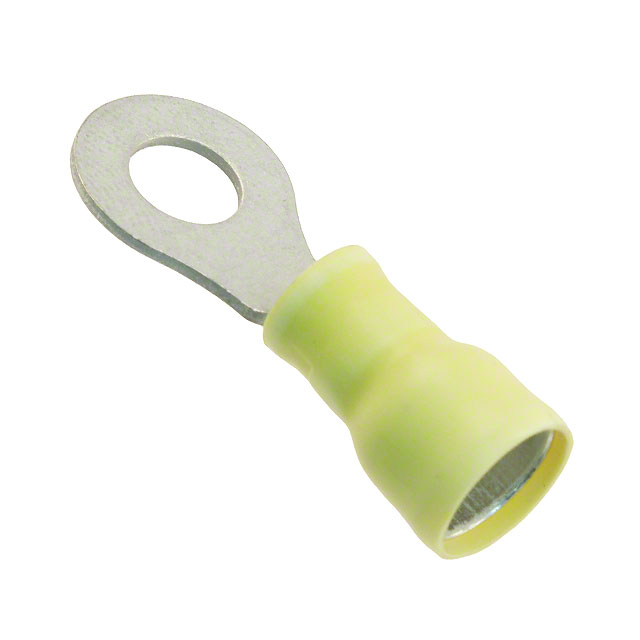

35345
Or copy the link below:
- Mfr.Part #
- 35345
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG #1/4
- Stock
- 13,038
- In Stock ：
- 13,038
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Insulation :
- Insulated
- Width - Outer Edges :
- 0.531 13.49mm
- Contact Plating :
- Tin
- Factory Lead Time :
- 7 Weeks
- Packaging :
- Bulk
- HTS Code :
- 8536.90.40.00
- ECCN Code :
- EAR99
- Mounting Type :
- Free Hanging (In-Line)
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Wire/Cable Diameter :
- 7.62 mm
- Tongue Thickness :
- 1.0668mm
- Terminal Type :
- Circular
- Stud Size :
- M6
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Lead Free :
- Lead Free
- Mount :
- Free Hanging
- Wire Cross Section :
- 6.64 mm2
- Contact Material :
- Copper
- Length - Overall :
- 1.416 35.97mm
- Thickness :
- 0.040 1.02mm
- Depth :
- 13.49mm
- Wire Gauge :
- 10-12 AWG
- Voltage - Rated AC :
- 300V
- Orientation :
- Straight
- Termination :
- Crimp
- Diameter - Inside :
- 8 mm
- Length :
- 36mm
- Stud/Tab Size :
- 1/4 Stud
- Number of Holes :
- 1
- Feature :
- Serrated Termination
- REACH SVHC :
- Unknown
- Series :
- PIDG
- Gender :
- FEMALE
- Plating Thickness :
- 2.54μm
- Heavy Duty :
- No
- Material Thickness :
- 1.07mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- RoHS Status :
- RoHS Compliant
- Insulation Diameter :
- 0.170 ~ 0.300 (4.32mm ~ 7.62mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulated Wire Support :
- yes
- Color :
- Yellow
- Published :
- 2008
- Stud Diameter :
- 6.731 mm
- Wire Gauge (Min) :
- 12 AWG
- Wire Gauge (Max) :
- 10 AWG
- Datasheets
- 35345
35345 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
