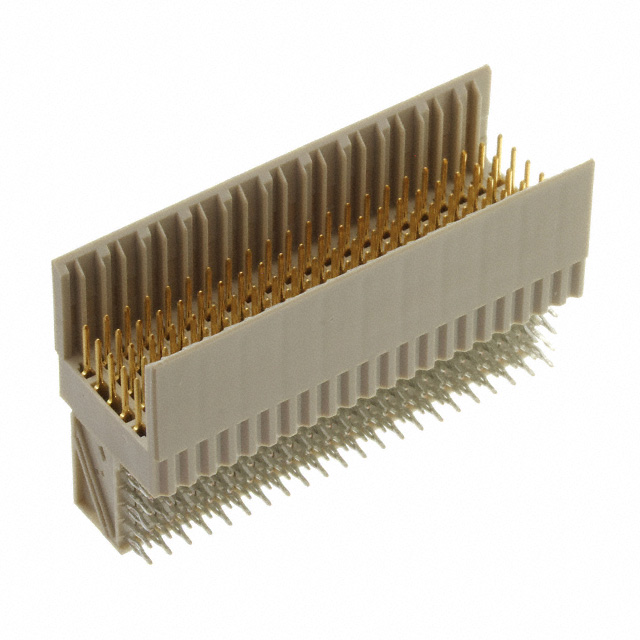

352131-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Hard Metric, Standard

Number of Conductors :

ONE

Number of Columns :

22

Body/Shell Style :

PLUG

Insulator Color :

Gray

Current Rating :

1.5A

Total Number of Contacts :

110

Number of Positions :

110

Orientation :

RIGHT ANGLE

Factory Lead Time :

14 Weeks

Reliability :

COMMERCIAL

IEC Conformance :

No

Connector Style :

B 22

Mounting Type :

Board Edge, Through Hole, Right Angle

Pitch :

0.079 2.00mm

Mating Contact Row Spacing :

0.079 inch

Lead Pitch :

2mm

Plating Thickness :

500 nm

Connector Usage :

Backplane

Contact Finish :

Gold

MIL Conformance :

No

PCB Mounting Orientation :

RIGHT ANGLE

Housing Material :

Polyester

Packaging :

Tray

Length :

43.9mm

PCB Contact Row Spacing :

2.0066 mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Lead Free :

Not Applicable

Voltage - Rated :

500Vrms

DIN Conformance :

No

Number of Rows :

5

Operating Temperature :

-55°C~125°C

Contact Pattern :

RECTANGULAR

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Connector Type :

Header, Male Pins

Option :

GENERAL PURPOSE

Flammability Rating :

UL94 V-0

Mount :

Through Hole

Number Of PCB Rows :

5

Number of Positions Loaded :

All

Termination :

Press-Fit

UL Flammability Code :

94V-0

RoHS Status :

Non-RoHS Compliant

Contact Material :

Bronze

Depth :

26.8mm

Max Current Rating :

1.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2005

Housing Color :

Grey

Filter Feature :

No

ELV :

Non-Compliant

ECCN Code :

EAR99

Body Breadth :

0.606 inch

Contact Gender :

Male

Sealable :

No

Polarization Key :

POLARIZED HOUSING

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Series :

Z-PACK

Contact Style :

SQ PIN-SKT

Contact Finish Thickness :

30.0μin 0.76μm

Contact Plating :

Gold, Lead, Tin

Shielding :

Unshielded
