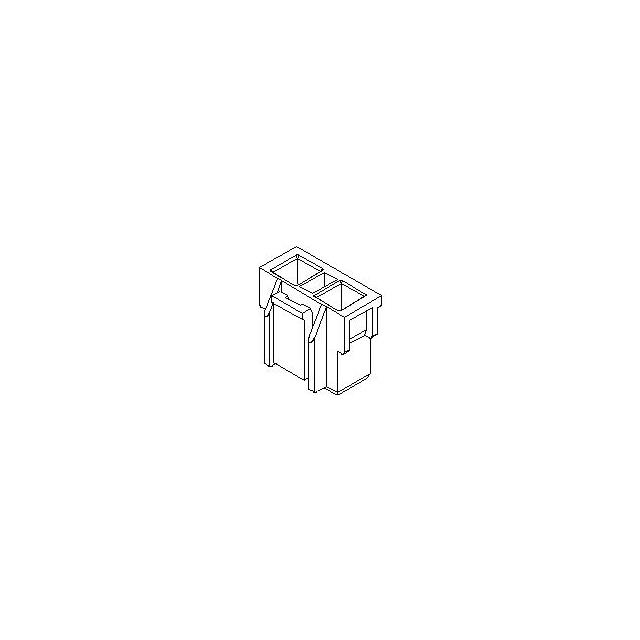

35191-0200

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

IEC Conformance :

No

Number of Contact Rows :

1

Insulation Resistance :

1000000000 Ω

Termination Type :

Crimp

Manufacturer :

Molex

Body Depth :

0.524 inch

Filter Feature :

No

Mounting Option 1 :

LOCKING MECH

Voltage Rating Max :

250VDC/250VAC

Product Height (mm) :

9.1(mm)

Mounting Type :

CABLE

Mixed Contacts :

No

Number of Contacts :

2(POS)

Reliability :

COMMERCIAL

Contact Material :

NOT SPECIFIED

Connector Type :

BOARD CONNECTOR

Product Length (mm) :

15.5(mm)

Product Depth (mm) :

13.3(mm)

DIN Conformance :

No

Additional Feature :

COMPATIBLE CONTACTS: 35069-9002; 35069-8001, LOW PROFILE, POLARIZED

Gender :

RCP

Mounting Style :

RIGHT ANGLE

Polarization Key :

CENTER

Mating Contact Pitch :

0.312 inch

Total Number of Contacts :

2

Mating Information :

35328-0210

ECCN Code :

EAR99

Reach Compliance Code :

Compliant

Body/Shell Style :

PLUG

Pbfree Code :

yes

Body Breadth :

0.37 inch

Current Rating (Max) :

7/Contact(A)

Contact Pattern :

RECTANGULAR

Package :

Box

Type :

Housing

Packaging :

Bag

Reference Standard :

UL, CSA

Series :

*

MIL Conformance :

No

Operating Temp Range :

-40C to 105C

Housing Color :

Natural

Contact Gender :

FEMALE

Pitch (mm) :

7.92(mm)

Subcategory :

Headers and Edge Type Connectors

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0

Product Status :

Active

Body Orientation :

Straight

Wire Gauge :

18(AWG)

Option :

GENERAL PURPOSE

Terminal Pitch :

7.92 mm
