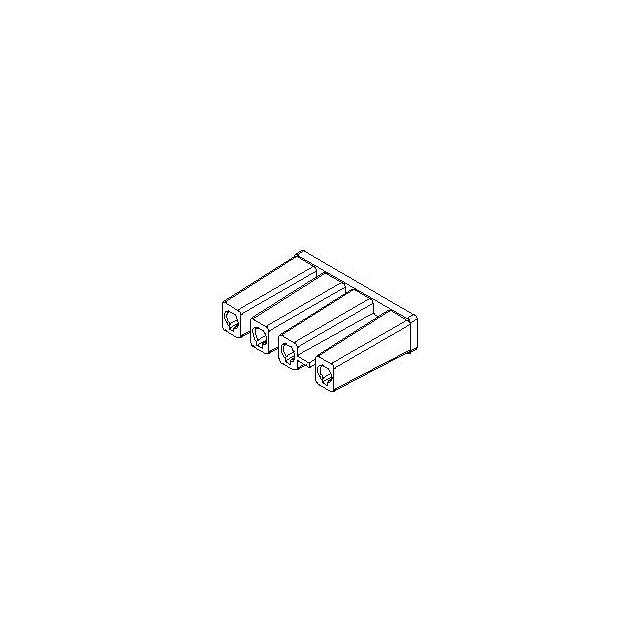

35183-0417
- Mfr.Part #
- 35183-0417
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 236 DIA HSG 4P
- Stock
- 3,744
- In Stock :
- 3,744
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Rectangular Connector Housings
- Withdrawl Force-Min :
- 5.7824 N
- Reference Standard :
- UL, CSA
- Product Depth (mm) :
- 7.6(mm)
- Body Orientation :
- Straight
- Series :
- *
- Package :
- Box
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Contact Pattern :
- RECTANGULAR
- MIL Conformance :
- No
- Shell Material :
- Noryl
- Mixed Contacts :
- No
- Insulation Resistance :
- 100000000 Ω
- Reliability :
- COMMERCIAL
- Gender :
- RCP
- Contact Resistance :
- 10 MΩ
- Insertion Force-Max :
- 19.5712 N
- Voltage Rating Max :
- 250V
- Body Breadth :
- 0.299 inch
- Reach Compliance Code :
- Unknown
- DIN Conformance :
- No
- Current Rating (Max) :
- 7/Contact(A)
- Filter Feature :
- No
- Housing Material :
- Noryl
- Product Status :
- Active
- Rated Current (Signal) :
- 7 A
- Dielectric Withstanding Voltage :
- 1500VAC V
- IEC Conformance :
- No
- Connector Type :
- RECTANGULAR POWER CONNECTOR
- Contact Gender :
- FEMALE
- Product Length (mm) :
- 32(mm)
- Contact Material :
- NOT SPECIFIED
- UL Flammability Code :
- 94V-1
- Number of Contact Rows :
- 1
- Type :
- Housing
- Packaging :
- Bag
- Additional Feature :
- MK2, COMPTABILE CONTACTS: 35716-0110; 35716-0310; 35716-0190; 35716-0193
- Contact Finish Termination :
- NOT SPECIFIED
- Mounting Type :
- CABLE
- Body Depth :
- 0.906 inch
- Subcategory :
- Headers and Edge Type Connectors
- Termination Type :
- Crimp
- Total Number of Contacts :
- 4
- Mating Contact Pitch :
- 0.315 inch
- Durability :
- 30 Cycles
- Polarization Key :
- POLAR PIN POSITION
- Manufacturer :
- Molex
- Number of Contacts :
- 4(POS)
- Mating Information :
- 35309-0410
- Insulator Color :
- Gray
- Empty Shell :
- No
- Product Height (mm) :
- 23(mm)
- Operating Temp Range :
- -25C to 85C
- Contact Style :
- RND PIN-SKT
- Housing Color :
- Gray
- Body/Shell Style :
- PLUG
- HTS Code :
- 8536.69.40.30
- Datasheets
- 35183-0417
