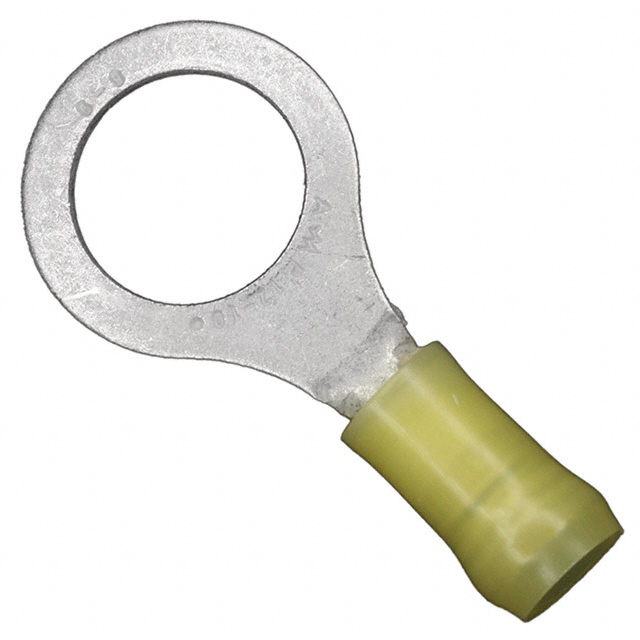

35151
Or copy the link below:
- Mfr.Part #
- 35151
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG #1/2
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Length :
- 40.386mm
- Depth :
- 19.05mm
- Heavy Duty :
- No
- RoHS Status :
- RoHS Compliant
- Gender :
- FEMALE
- Insulation :
- Insulated
- Mount :
- Free Hanging
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Insulated Wire Support :
- yes
- Wire/Cable Diameter :
- 6.35 mm
- Series :
- PIDG
- Material Thickness :
- 1.016mm
- Sealable :
- No
- Stud/Tab Size :
- 1/2 Stud
- Width :
- 19.1mm
- Government Qualified :
- No
- Material :
- Copper
- Feature :
- Serrated Termination
- Wire Gauge (Min) :
- 10 AWG
- Material - Insulation :
- Polyamide (PA), Nylon
- Packaging :
- Bulk
- Stud Size :
- M12
- Contact Material :
- Copper
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Max) :
- 12 AWG
- Lead Free :
- Lead Free
- Color :
- Yellow
- Length - Overall :
- 1.594 40.49mm
- Published :
- 2007
- Width - Outer Edges :
- 0.750 19.05mm
- Stud Diameter :
- 13.08 mm
- Body Material :
- Copper
- Plating :
- Tin
- Insulation Diameter :
- 0.150 ~ 0.250 (3.81mm ~ 6.35mm)
- Plating Thickness :
- 2.54μm
- Terminal Type :
- Circular
- Tongue Thickness :
- 1.02mm
- Mounting Type :
- Free Hanging (In-Line)
- Number of Holes :
- 1
- Termination :
- Crimp
- Contact Plating :
- Tin
- Thread Size :
- M12
- Wire Gauge :
- 10-12 AWG
- Factory Lead Time :
- 4 Weeks
- Diameter - Inside :
- 6.43 mm
- Thickness :
- 0.039 0.99mm
- Orientation :
- Straight
- Voltage - Rated AC :
- 300V
- ELV :
- Compliant
- Contact Finish :
- Tin
- Body Plating :
- Tin
- Datasheets
- 35151
35151 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
