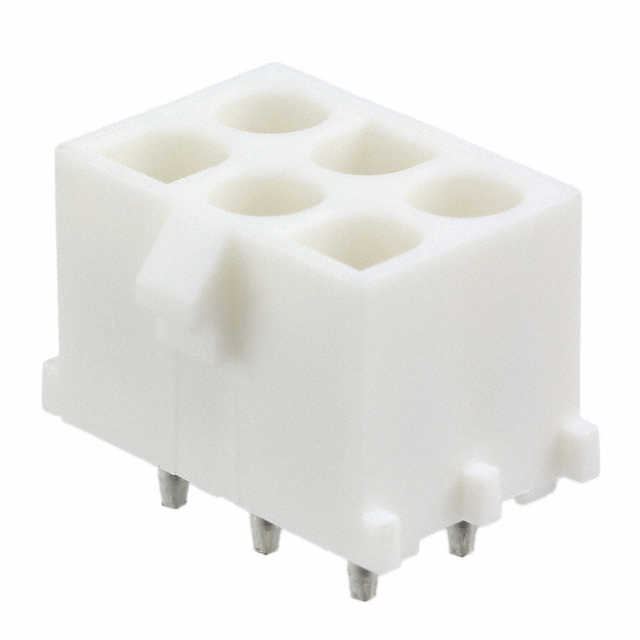

350827-4
Or copy the link below:
- Mfr.Part #
- 350827-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 6POS 0.25 GOLD PCB
- Stock
- 1,800
- In Stock ：
- 1,800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Series :
- Universal MATE-N-LOK
- Housing Color :
- Natural, White
- Color :
- White
- Contact Length - Post :
- 0.155 3.94mm
- Contact Material :
- Phosphor Bronze
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -40°C
- Filter Feature :
- No
- Sealable :
- No
- Contact Current Rating :
- 12A
- UL Flammability Code :
- 94V-0
- VDE Tested :
- yes
- DIN Conformance :
- No
- Contact Plating :
- Tin, Gold
- Published :
- 2008
- Number of Contacts :
- 6
- Contact Finish - Mating :
- Gold
- Contact Finish - Post :
- Tin
- Connector Type :
- Header
- Insulation Color :
- Natural
- Max Operating Temperature :
- 221°C
- Height :
- 13.97mm
- Approval Agency :
- CSA
- Gender :
- Receptacle
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Insulation Material :
- Polyamide (PA), Nylon
- Plating Thickness :
- 2.54μm
- Contact Gender :
- FEMALE
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Max Voltage Rating (AC) :
- 600V
- MIL Conformance :
- No
- JESD-609 Code :
- e3
- PCB Thickness :
- 1.57mm
- Number of Rows :
- 3
- Current Rating :
- 19A
- Row Spacing - Mating :
- 0.250 (6.35mm)
- Length :
- 13.27mm
- Contact Type :
- Female Socket
- Empty Shell :
- No
- Housing Material :
- Nylon
- Circuit Application :
- Power
- Pitch - Mating :
- 0.250 6.35mm
- Fastening Type :
- Locking Ramp
- Width :
- 20.32mm
- Factory Lead Time :
- 16 Weeks
- Insulation Height :
- 0.550 13.97mm
- Contact Shape :
- Circular
- Orientation :
- Vertical
- RoHS Status :
- RoHS Compliant
- Contact Retention :
- Without
- Termination :
- Solder
- Option :
- GENERAL PURPOSE
- Number of Ports :
- 1
- IEC Conformance :
- No
- Operating Supply Voltage :
- 600V
- Voltage - Rated :
- 600V
- Mounting Type :
- Through Hole
- Datasheets
- 350827-4
3 Rows Header Solder Phosphor Bronze Through Hole Bulk Gold Polyamide (PA), Nylon Female Socket
350827-4 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Universal MATE-N-LOK Series.Use it below 221°C.A minimum temperature of -40°C must be maintained for the operation of this device.With 1 ports, it is capable of managing a wide range of tasks.By Through Hole, the part is mounted.The operating voltage of this memory is 600V.
350827-4 Features
Universal MATE-N-LOK series
350827-4 Applications
There are a lot of TE Connectivity AMP Connectors
350827-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
