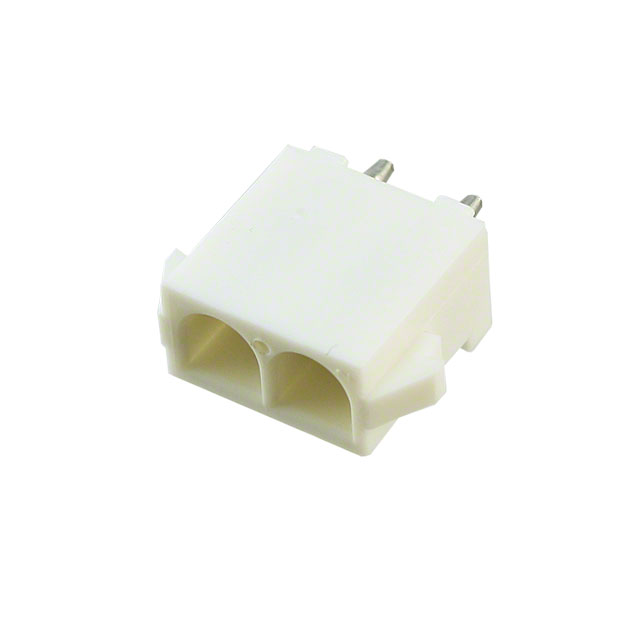

350824-4
Or copy the link below:
- Mfr.Part #
- 350824-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 2POS 0.25 GOLD PCB
- Stock
- 552
- In Stock ：
- 552
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Height :
- 0.550 13.97mm
- Filter Feature :
- No
- Orientation :
- Vertical
- Plating Thickness :
- 2.54μm
- Number of Rows :
- 1
- JESD-609 Code :
- e3
- Contact Type :
- Female Socket
- Voltage - Rated :
- 600V
- Contact Current Rating :
- 12A
- Number of Contacts :
- 2
- Published :
- 2008
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Empty Shell :
- No
- Series :
- Universal MATE-N-LOK
- Width :
- 7.62mm
- Contact Retention :
- Without
- MIL Conformance :
- No
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Shape :
- Circular
- Mixed Contacts :
- No
- Max Voltage Rating (DC) :
- 600.6kV
- Lead Free :
- Lead Free
- Contact Finish - Mating :
- Gold
- Contact Finish - Post :
- Tin
- Current Rating :
- 19A
- Style :
- Board to Cable/Wire
- Reliability :
- COMMERCIAL
- Circuit Application :
- Power
- Approval Agency :
- CSA
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Material Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 600V
- Length :
- 13.97mm
- Fastening Type :
- Locking Ramp
- Mount :
- Through Hole
- Gender :
- Male
- Height :
- 13.97mm
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Insulation Color :
- White
- Min Operating Temperature :
- -40°C
- Option :
- GENERAL PURPOSE
- UL Flammability Code :
- 94V-0
- REACH SVHC :
- Unknown
- PCB Thickness :
- 1.57mm
- Connector Type :
- Header
- Contact Gender :
- FEMALE
- Body Depth :
- 0.58 inch
- Termination :
- Solder
- Max Voltage Rating (AC) :
- 600V
- Pitch - Mating :
- 0.250 6.35mm
- Durability :
- 50 Cycles
- VDE Tested :
- yes
- Number of Conductors :
- ONE
- Housing Material :
- Nylon
- Factory Lead Time :
- 15 Weeks
- Contact Material :
- Phosphor Bronze
- ELV :
- Compliant
- Contact Plating :
- Gold, Tin
- Max Operating Temperature :
- 221°C
- Contact Length - Post :
- 0.155 3.94mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Sealable :
- No
- RoHS Status :
- RoHS Compliant
- Pbfree Code :
- yes
- Number of Positions Loaded :
- All
- Body Breadth :
- 0.3 inch
- Packaging :
- Bulk
- Datasheets
- 350824-4
1 Rows Header Solder Phosphor Bronze Through Hole Bulk Gold Polyamide (PA), Nylon Female Socket
350824-4 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Universal MATE-N-LOK Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -40°C.The part is mounted by Through Hole.This memory's operating supply voltage is 600V.
350824-4 Features
Universal MATE-N-LOK series
350824-4 Applications
There are a lot of TE Connectivity AMP Connectors
350824-4 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
