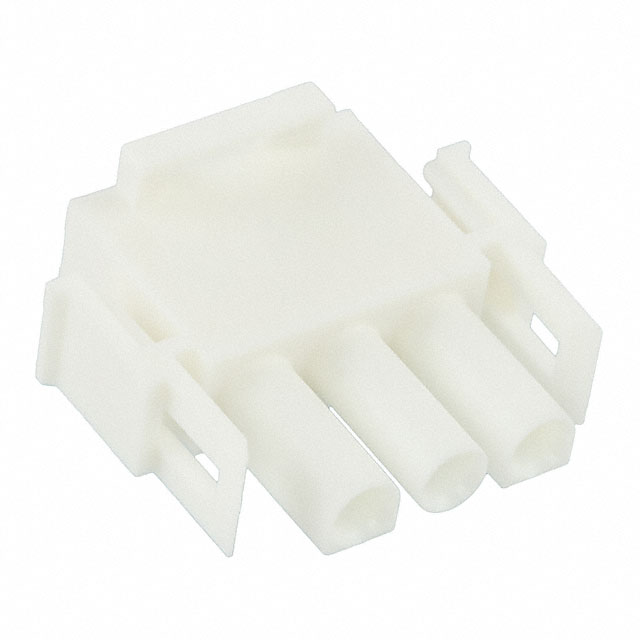

350766-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Height :

20.32mm

Pins per row :

3

Filter Feature :

No

Wire Size :

30 to 10, 30 AWG

Brand :

TE Connectivity / AMP

Case material :

Polyamide

Packaging :

Bag

Max. temperature :

+125°C

AWG (min.) :

20

Contact Gender :

Male

Brand Name :

AMP

Mounting Style :

Free Hanging

RoHS-compliant :

yes

Contact Style :

RND PIN-SKT

Nominal voltage :

600V AC

Pin shape :

Circular

Pitch :

6.3500 mm

Mounting Type :

CABLE

Contact Pattern :

RECTANGULAR

Product Depth (mm) :

14.73(mm)

Industrial packaging :

No

Body Breadth :

0.3 inch

Product :

Plug Housings

MIL Conformance :

No

Operating Temp Range :

-55C to 125C

Min. temperature :

-55°C

Number of Positions :

3 Position

Number of Contact Rows :

1

Manufacturer part # :

350766-4

Total Number of Contacts :

3

Width :

27.43mm

For Use With :

Centerline Soft Shell Pin and Socket Connector

Pitch (mm) :

6.35(mm)

No. of rows :

1

Pins :

1 x 3

AWG max. :

30

Option :

GENERAL PURPOSE

Contact Plating :

-

CS :

6.35mm

Empty Shell :

No

Dielectric Withstanding Voltage :

600VAC V

Accessory Type :

-

Nominal current (details) :

15A

Current Rating (Max) :

36/Contact(A)

Durability :

50 Cycles

Polarization Key :

POLARIZED RIB(S)

Product Category :

Pin and Socket Connectors

Shell Material :

Nylon

Series :

Universal-MATE-N-LOK

Wire Gauge :

10-30(AWG)

Length :

14.73mm

Total number of pins :

3

Reach Compliance Code :

Compliant

Contact Material :

NOT SPECIFIED

Termination Style :

Crimp

Mounting :

Cable Mount

Connection :

-

Number of Contacts :

3(POS)

Content :

1pc(s)

Mounting Option 2 :

LOCKING

Body Orientation :

Straight

Dim :

(L x W x H) 14.73 x 27.43 x 20.32 mm

ECCN Code :

EAR99

Housing Color :

White

Pbfree Code :

yes

Reference Standard :

CSA,UL,VDE

RoHS :

Details

Base/Housing Material :

Nylon

Product Height (mm) :

27.43(mm)

Tradename :

MATE-N-LOK

Product Type :

Pin and Socket Connectors

UL Flammability Code :

94V-0

Gender :

PLUG

Number of Rows :

1

Operating Temperature :

-55 to 105 °C

DIN Conformance :

No

Voltage Rating Max :

600VDC/600VAC

Body/Shell Style :

PLUG

Insulator Color :

White

Type :

UL94V-0

Mounting Option 1 :

Latch

Mating Contact Pitch :

0.25 inch

Nominal current - rounded value :

15A

Connector Type :

Power Connector

Body Depth :

1.07 inch

Current Rating :

-

Mixed Contacts :

No

Housing Material :

Nylon

Reliability :

COMMERCIAL

Termination Type :

Crimp

IEC Conformance :

No

Nominal current :

15A

HTS Code :

8536.69.40.30

Factory Lead Time :

17 Weeks

Voltage Rating :

600 V
