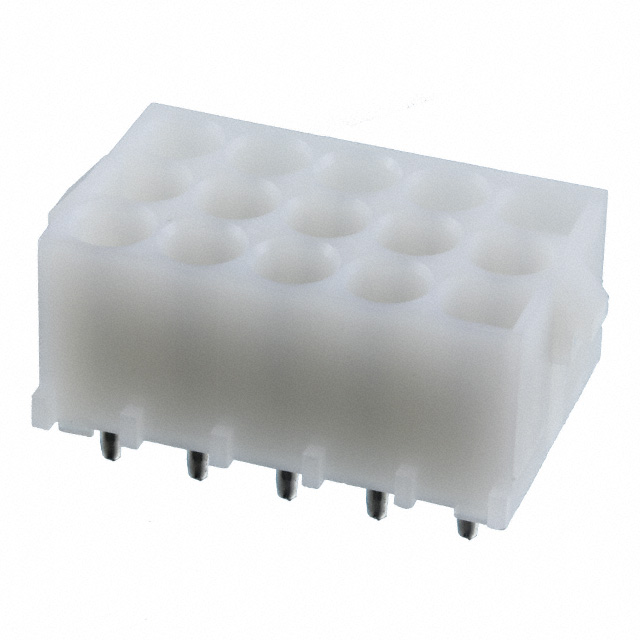

350765-5
Or copy the link below:
- Mfr.Part #
- 350765-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 15POS 0.25 GOLD PCB
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Operating Supply Voltage :
- 600V
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Style :
- Board to Board or Cable
- Fastening Type :
- Latch Lock
- DIN Conformance :
- No
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-2
- Empty Shell :
- No
- Contact Current Rating :
- 12A
- Contact Finish - Mating :
- Gold
- IEC Conformance :
- No
- PCB Thickness :
- 1.57mm
- VDE Tested :
- yes
- Plating Thickness :
- 2.54μm
- Row Spacing - Mating :
- 0.250 (6.35mm)
- Mixed Contacts :
- No
- Number of Ports :
- 1
- Packaging :
- Bulk
- Max Operating Temperature :
- 221°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Housing Material :
- Nylon
- Min Operating Temperature :
- -40°C
- Sealable :
- No
- Number of Positions Loaded :
- All
- Contact Gender :
- FEMALE
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Color :
- Natural
- Series :
- Universal MATE-N-LOK
- Published :
- 2008
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 600V
- Insulation Height :
- 0.580 14.73mm
- Connector Type :
- Socket
- Current Rating :
- 19A
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Pitch - Mating :
- 0.250 6.35mm
- Contact Material :
- Phosphor Bronze
- Contact Type :
- Female Socket
- Circuit Application :
- Power
- Panel Thickness :
- 2.286mm
- Orientation :
- Vertical
- Contact Retention :
- Without
- Contact Length - Post :
- 0.155 3.94mm
- UL Flammability Code :
- 94V-2
- Max Voltage Rating (AC) :
- 600V
- Number of Rows :
- 3
- Factory Lead Time :
- 15 Weeks
- Contact Plating :
- Tin, Gold
- Filter Feature :
- No
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Approval Agency :
- CSA
- JESD-609 Code :
- e3
- Number of Contacts :
- 15
- ELV :
- Compliant
- Mount :
- Through Hole
- Contact Shape :
- Circular
- Datasheets
- 350765-5
3 Rows Socket Solder Phosphor Bronze Through Hole Bulk Gold Polyamide (PA), Nylon Female Socket
350765-5 Overview
The packaging contains Socket.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Universal MATE-N-LOK belongs to the Universal MATE-N-LOK Series.Whenever the temperature is below 221°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There are 1 ports available for managing a variety of tasks on this device.There is a Through Hole mount on the part.A 600V voltage is used to supply power to this memory.
350765-5 Features
Universal MATE-N-LOK series
350765-5 Applications
There are a lot of TE Connectivity AMP Connectors
350765-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
