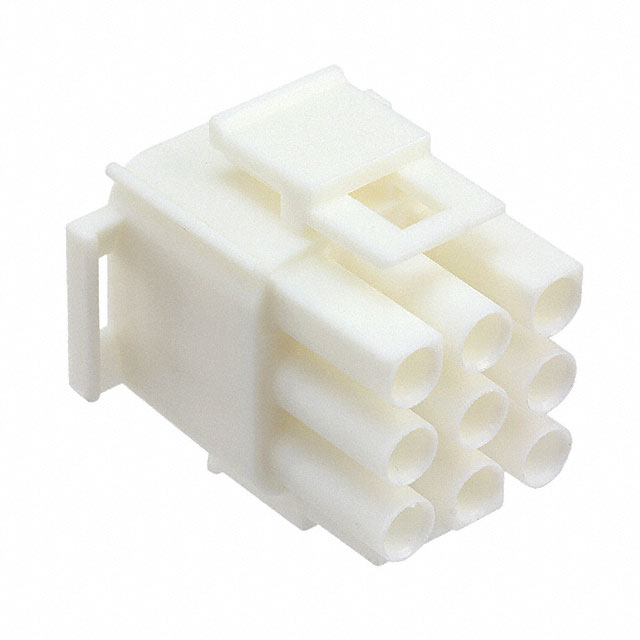

350720-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Number of Rows :

3

Max Operating Temperature :

125°C

Wire Gauge (Max) :

30 AWG

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Gender :

Male

RoHS Status :

RoHS Compliant

Color :

White

Current Rating :

19A

Mounting Type :

Free Hanging (In-Line)

Factory Lead Time :

17 Weeks

Note :

Contacts Not Included

Housing Material :

Nylon

Voltage - Rated :

600V

Connector Type :

PLUG

Fastening Type :

Latch Lock

Contact Retention :

Without

Max Voltage Rating (AC) :

600V

Orientation :

Straight

Lead Free :

Lead Free

Contact Termination :

Crimp

MIL Conformance :

No

Pitch :

6.35mm

Row Spacing :

0.250 (6.35mm)

Contact Type :

MALE OR FEMALE

Depth :

27.31mm

REACH SVHC :

No SVHC

Reliability :

COMMERCIAL

Insulation Resistance :

1GOhm

Length :

27.43mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

DIN Conformance :

No

Min Operating Temperature :

-55°C

ELV :

Compliant

Housing Color :

Natural, White

Sealable :

No

Mixed Contacts :

No

Max Voltage Rating (DC) :

600V

IEC Conformance :

No

Shell Material :

Polyamide

Wire Gauge (Min) :

10 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Universal MATE-N-LOK

Number of Signal Positions :

0

Wire/Cable Gauge :

30 AWG

Mount :

Cable, Free Hanging

Polarization Key :

POLARIZED RIB(S)

Approval Agency :

CSA

Empty Shell :

No

Pbfree Code :

yes

Flammability Rating :

UL94 V-0

Published :

2008

Packaging :

Bulk

Number of Contacts :

9

Panel Thickness :

1.9812mm

Filter Feature :

No

Operating Supply Voltage :

600V

VDE Tested :

yes
