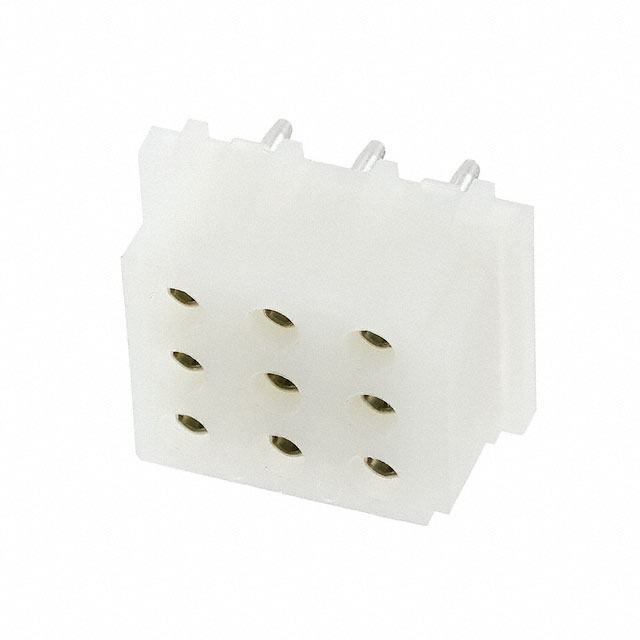

350577-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Max Voltage Rating (AC) :

250V

Length - Tail :

5.5626mm

Number of Ports :

1

MIL Conformance :

No

Operating Supply Voltage :

250V

Flammability Rating :

UL94 V-2

Orientation :

Vertical

Width :

16.383mm

Termination :

Solder

Connector Type :

Header

Max Operating Temperature :

105°C

Mixed Contacts :

No

Housing Material :

Nylon

IEC Conformance :

No

Published :

1998

Contact Shape :

Circular

Pitch - Mating :

0.240 6.10mm

Housing Color :

Natural

Contact Current Rating :

10A

Approval Agency :

UL

PCB Thickness :

3.18mm

Filter Feature :

No

Contact Length - Post :

0.220 5.58mm

Option :

GENERAL PURPOSE

Number of Rows :

3

Series :

Commercial MATE-N-LOK

Gender :

Receptacle

Mount :

Through Hole

Circuit Application :

Power

Contact Material :

Phosphor Bronze

ELV :

Compliant

Mounting Type :

Through Hole

Mating Retention :

Without

Number of Contacts :

9

DIN Conformance :

No

Mating Alignment :

With

Empty Shell :

No

Packaging :

Bulk

Voltage - Rated :

250V

Insulation Height :

0.470 11.94mm

Contact Type :

Female Socket

Height :

11.938mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Length :

24.13mm

Min Operating Temperature :

-30°C

Current Rating :

13A

Factory Lead Time :

20 Weeks

Row Spacing - Mating :

0.202 (5.13mm)

Pbfree Code :

yes

Lead Free :

Lead Free

Style :

Board to Cable/Wire

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Sealable :

No

RoHS Status :

RoHS Compliant

Number of Positions Loaded :

All

VDE Tested :

yes

Fastening Type :

Push-Pull

Insulation Material :

Polyamide (PA), Nylon

Contact Finish - Mating :

Tin
