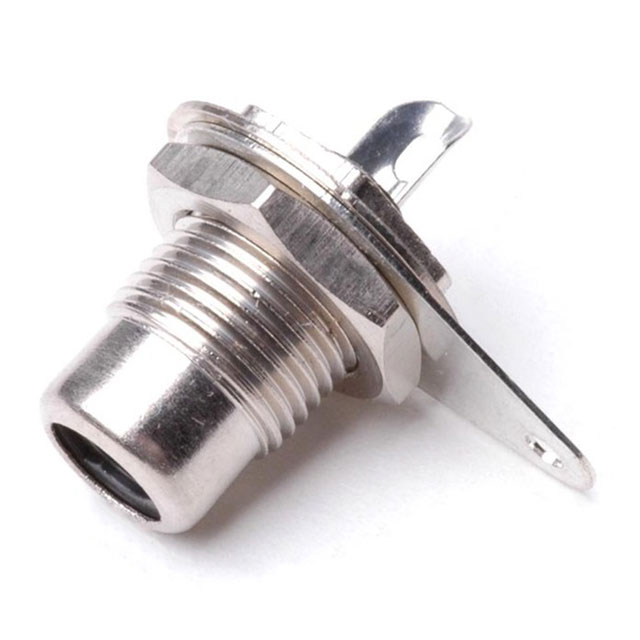

3501FR

Manufacturer :

TubeDepot

Product Category :

Audio Connectors

Lead Free :

Lead Free

Shielding :

Unshielded

Body Color :

Silver

Packaging :

Bulk

Gender :

FEMALE

Industry Recognized Mating Diameter :

3.20mm ID, 9.00mm OD (RCA)

Termination :

Solder Eyelet(s)

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

Insulation Color :

Black

Contact Finish - Mating :

NOT SPECIFIED

DIN Conformance :

No

Number of Poles :

1

Color :

Natural

ECCN Code :

EAR99

Length :

22.63mm

Feature :

Grounding Tab, Mounting Hardware

Orientation :

Straight

IEC Conformance :

No

Thread Size :

3/8-32

Number of Terminations :

2

Body Material :

Brass

Panel Hole Size :

0.375 9.52mm

Internal Switch(s) :

Does Not Contain Switch

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Factory Lead Time :

8 Weeks

Min Operating Temperature :

-55°C

Mount :

Cable, Panel

REACH SVHC :

Unknown

Contact Material - Plating :

Nickel

Published :

2005

Option :

GENERAL PURPOSE

Signal Lines :

Mono

Connector Type :

Phono (RCA) Jack

Max Operating Temperature :

85°C

Package / Case :

Metal

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Number of Ports :

1

Depth :

15.88mm

Mounting Type :

Panel Mount
