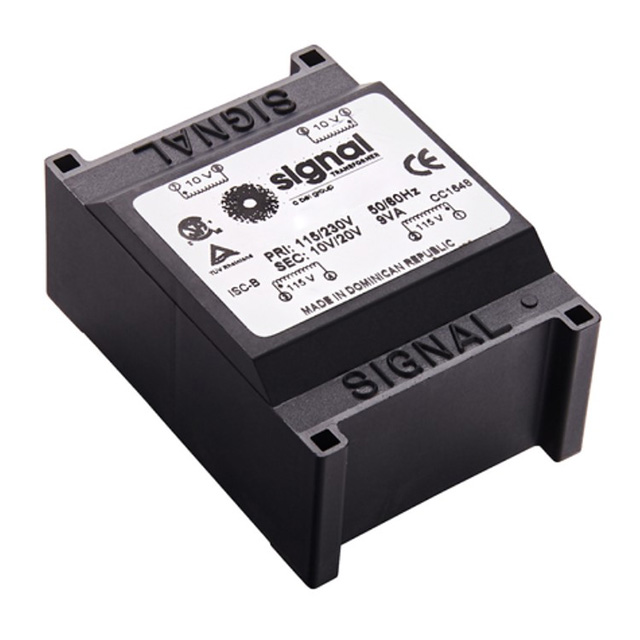

34-265-LPI

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Lead Free :

Lead Free

Power - Max :

9VA

Moisture Sensitivity Level (MSL) :

Not Applicable

Published :

2009

Number of Secondary Winding :

2

Approval Agency :

UL; CSA; TUV

Primary Winding(s) :

Dual

Height Seated (Max) :

27.40mm

Max Power Dissipation :

9W

Current - Output (Max) :

Parallel 530mA Series 265mA

Number of Contacts :

8

Voltage - Isolation :

4000Vrms

Max Output Current :

265mA

Width :

42.1mm

Height :

27.4mm

Voltage - Secondary (Full Load) :

Parallel 17V Series 34V

Length :

60.2mm

Mount :

Through Hole

Voltage - Primary :

115V 230V

Size / Dimension :

60.20mm Lx42.10mm W

Type :

Semi-Toroidal

Output Power :

9W

Output Voltage 1 :

17V

RoHS Status :

ROHS3 Compliant

Additional Feature :

PCB MOUNTABLE

VA Rating :

9 VA

Weight :

0.51lb 231.33g

Frequency :

60Hz

Mounting Type :

Through Hole

Center Tap :

No

Physical Dimension :

60.2mm X 42.1mm X 27.4mm

Termination :

PC Pin

ECCN Code :

EAR99

Factory Lead Time :

18 Weeks

Series :

LPI

Termination Style :

PC Pin
