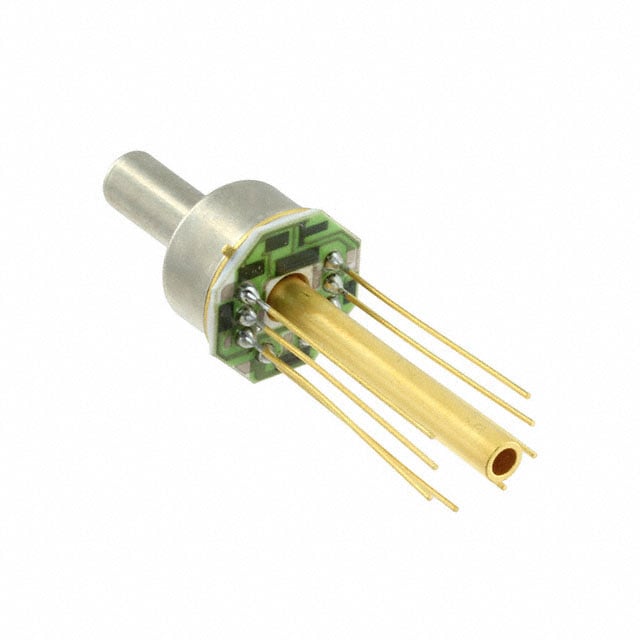

33A-001D
Or copy the link below:
- Mfr.Part #
- 33A-001D
- Manufacturer
- TE Connectivity Measurement Specialties
- Package / Case
- TO-8 Style, 12 Leads
- Datasheet
- Download
- Description
- SENSOR PRES 1PSID 0-100MV TO-8
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Measurement Specialties
- Product Category :
- Pressure Sensors, Transducers
- REACH SVHC :
- No SVHC
- Package / Case :
- TO-8 Style, 12 Leads
- Output Voltage :
- 100mV
- Operating Pressure :
- 1PSI (6.89kPa)
- Output Type :
- Wheatstone Bridge
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Sensors/Transducers Type :
- PRESSURE SENSOR,PEIZORESISTIVE
- Feature :
- Temperature Compensated
- Published :
- 2010
- Output :
- 0 mV ~ 100 mV
- Pressure Type :
- Differential
- Port Size :
- Male - 0.19 4.78mm Tube Male - 0.13 3.18mm Tube
- Accuracy :
- ±0.2%
- Voltage - Rated DC :
- 5.25V
- Port Style :
- Barbless
- Reach Compliance Code :
- Unknown
- Pbfree Code :
- yes
- Operating Temperature :
- -40°C~125°C
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 10 Weeks
- Termination Style :
- PC Pin
- Maximum Pressure :
- 10PSI (68.95kPa)
- Nominal Supply Current :
- 1.5mA
- Applications :
- Board Mount
- Termination :
- PCB
- Datasheets
- 33A-001D
Differential Pressure Sensor Wheatstone Bridge -40°C~125°C 1PSI (6.89kPa) Barbless ±0.2% 0 mV ~ 100 mV Temperature Compensated
33A-001D Overview
Transducers in TO-8 Style, 12 Leads are included for convenience. For reliable performance, set the temperature of the transducers to -40°C~125°C. It is possible for the transducers to operate normally at nominal supply currents of 1.5mA. To make the transducers work, the voltage released by them must be 100mV. Transducers should be able to operate continuously at their rated ambient temperatures if the DC voltage is 5.25V.
33A-001D Features
Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: TO-8 Style, 12 Leads
Operating Temperature: -40°C~125°C
Operating Pressure: 1PSI (6.89kPa)
33A-001D Applications
There are a lot of TE Connectivity Measurement Specialties
33A-001D Transducers applications.
- Mobile Phones
- Virtual Reality and Gaming Equipment
- Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
- Refrigerant pressure monitoring in HVAC/R systems
- Dry air system pressure, process controls and automation
- Dry air system monitoring
