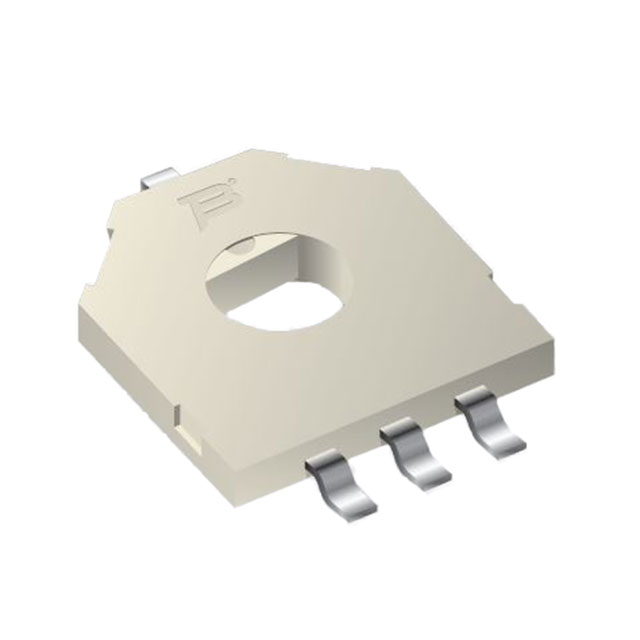

3382H-2-253
Or copy the link below:
- Mfr.Part #
- 3382H-2-253
- Manufacturer
- Bourns, Inc.
- Package / Case
- Module, PC Pins
- Datasheet
- Download
- Description
- SENSOR ROTARY 330DEG PC PIN
- Stock
- 30,835
- In Stock ：
- 30,835
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bourns, Inc.
- Product Category :
- Position Sensors - Angle, Linear Position Measuring
- Mounting Type :
- Through Hole
- Resistance Tolerance :
- ±30%
- Published :
- 2014
- Sensing Method :
- Resistive
- Output Signal :
- Clockwise Increase
- Factory Lead Time :
- 8 Weeks
- Max Operating Temperature :
- 120°C
- Package / Case :
- Module, PC Pins
- Actuator Type :
- Hole for Shaft
- Resistance :
- 25kOhms
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Base Part Number :
- 3382H
- Operating Temperature :
- -40°C~120°C
- Linearity :
- ±2%
- Termination :
- PC Pin
- Output :
- Resistive
- RoHS Status :
- Non-RoHS Compliant
- Rotation Angle - Electrical, Mechanical :
- 0° ~ 330°, Continuous
- Termination Style :
- PC Pin
- Packaging :
- Tube
- Tolerance :
- 30%
- For Measuring :
- Rotary Position
- Min Operating Temperature :
- -40°C
- Datasheets
- 3382H-2-253
For Measuring Rotary Position PC Pin Hole for Shaft -40°C~120°C Resistive ±2% 0° ~ 330°, Continuous Clockwise Increase Resistive Module, PC Pins
3382H-2-253 Overview
As a measure of protection, the linear position measuring sensors are housed in Module, PC Pins packages. There is an electronic component packaged in the Tube. To ensure proper functionality of angle position measurement sensors, the minimum operating temperature can be set to -40°C. Sensors for angle position measurement cannot operate above 120°C. Sensors for linear position measuring can oppose the passage of currents that are 25kOhms.
3382H-2-253 Features
Operating Temperature: -40°C~120°C
Mount: Through Hole
Package / Case: Module, PC Pins
Mounting Type: Through Hole
Resistance Tolerance: ±30%
3382H-2-253 Applications
There are a lot of Bourns Inc.
3382H-2-253 Angle & Linear Position Measuring Sensors applications.
- Medical robots and fitness equipment
- Absolute Rotary Position Sensor
- Steering Wheel Position Sensor
- Pedal Position Sensor
- Motor-shaft Position Sensor
- Throttle Position Sensor
- Float-Level Sensor
- Ride Height Position Sensor
- Non-Contacting Potentiometer
- X, Y, Z stage position feedback
