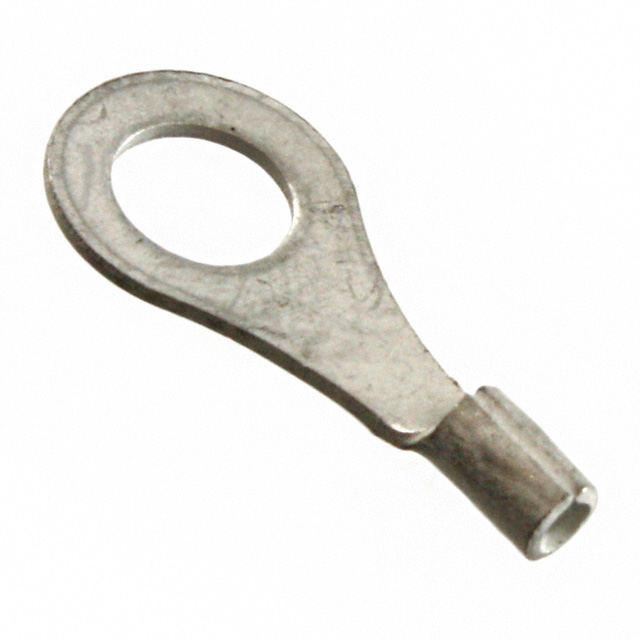

331401
Or copy the link below:
- Mfr.Part #
- 331401
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 22-26AWG #6 CRIMP
- Stock
- 2,952
- In Stock ：
- 2,952
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Heavy Duty :
- No
- Packaging :
- Bulk
- ECCN Code :
- EAR99
- Terminal Type :
- Circular
- Contact Plating :
- Tin
- Length :
- 13.82mm
- Number of Holes :
- 1
- ELV :
- Compliant
- HTS Code :
- 8536.90.40.00
- Wire Gauge (Max) :
- 22 AWG
- Mount :
- Stud
- Insulation :
- Non-Insulated
- Diameter - Inside :
- 787 μm
- Width - Outer Edges :
- 0.250 6.35mm
- Pbfree Code :
- yes
- Tongue Thickness :
- 510μm
- Termination :
- Crimp
- Stud Diameter :
- 3.68 mm
- Length - Overall :
- 0.544 13.82mm
- Stud Size :
- M3.5
- Mounting Type :
- Free Hanging (In-Line)
- Series :
- Solistrand
- Wire Gauge :
- 22-26 AWG
- Wire Gauge (Min) :
- 26 AWG
- Published :
- 2012
- Material Thickness :
- 508μm
- Stud/Tab Size :
- 6 Stud
- Lead Free :
- Not Applicable
- Feature :
- Brazed Seam, Serrated Termination
- Wire/Cable Gauge :
- 26 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Depth :
- 6.35mm
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Copper
- Factory Lead Time :
- 12 Weeks
- Terminal and Terminal Block Type :
- RING TERMINAL
- Wire Cross Section :
- 0.4 mm2
- Thickness :
- 0.018 0.46mm
- Datasheets
- 331401
331401 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
