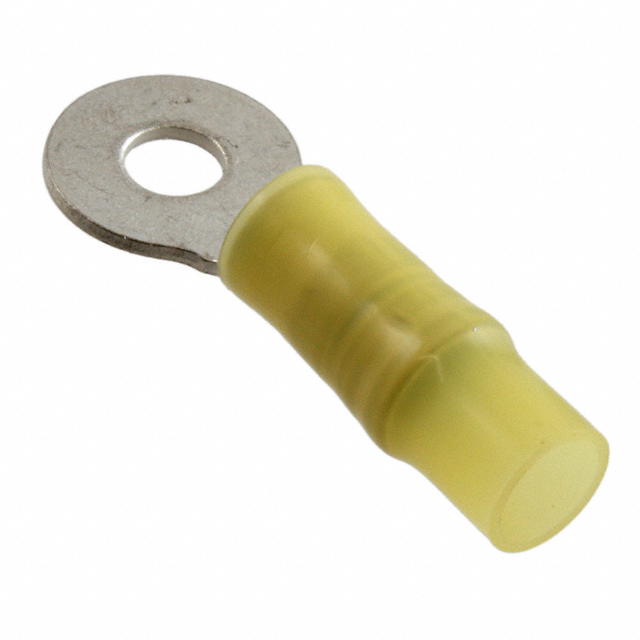

329389
Or copy the link below:
- Mfr.Part #
- 329389
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG #10
- Stock
- 389
- In Stock ：
- 389
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Stud Diameter :
- 5.0038 mm
- Color :
- Yellow
- Thickness :
- 0.040 1.02mm
- Wire Cross Section :
- 6.64 mm2
- Plating :
- Tin
- Termination :
- Crimp
- Contact Material :
- Copper
- Published :
- 2005
- Wire Gauge (Max) :
- 10 AWG
- Insulated Wire Support :
- yes
- Material - Insulation :
- Polyamide (PA), Nylon
- Number of Holes :
- 1
- Factory Lead Time :
- 18 Weeks
- Wire Gauge (Min) :
- 12 AWG
- Length :
- 36.3728mm
- Insulation Diameter :
- 0.150 ~ 0.220 (3.81mm ~ 5.59mm)
- Tongue Thickness :
- 1.0668mm
- Sealable :
- No
- ELV :
- Compliant
- Terminal Gender :
- FEMALE
- Wire/Cable Diameter :
- 5.588 mm
- Stud/Tab Size :
- 10 Stud
- Feature :
- Serrated Termination
- ECCN Code :
- EAR99
- Voltage - Rated AC :
- 300V
- Lead Free :
- Not Applicable
- Wire Gauge :
- 10-12 AWG
- RoHS Status :
- RoHS Compliant
- Terminal Type :
- Circular
- Width - Outer Edges :
- 0.500 12.70mm
- Length - Overall :
- 1.432 36.37mm
- Insulation :
- Insulated
- Terminal and Terminal Block Type :
- RING TERMINAL
- Series :
- PIDG
- Material Thickness :
- 1.016mm
- Mounting Type :
- Free Hanging (In-Line)
- HTS Code :
- 8536.90.40.00
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Datasheets
- 329389
