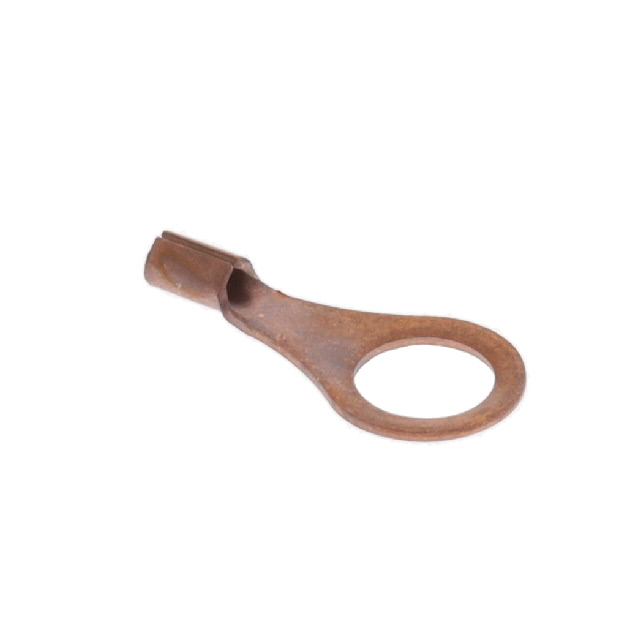

32859-1
Or copy the link below:
- Mfr.Part #
- 32859-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 22-26AWG #8 CRIMP
- Stock
- 12,565
- In Stock ：
- 12,565
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Contact Plating :
- Unplated
- Feature :
- Serrated Termination
- Material Thickness :
- 508μm
- Wire Gauge :
- 22-26 AWG
- Thickness :
- 0.018 0.46mm
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 13.82mm
- Termination :
- Crimp
- Length - Overall :
- 0.544 13.82mm
- Mounting Type :
- Free Hanging (In-Line)
- Factory Lead Time :
- 14 Weeks
- HTS Code :
- 8536.90.40.00
- Stud/Tab Size :
- 8 Stud
- RoHS Status :
- RoHS Compliant
- Number of Holes :
- 1
- ELV :
- Compliant
- Diameter - Inside :
- 890 μm
- Lead Free :
- Not Applicable
- Wire Gauge (Min) :
- 26 AWG
- Contact Material :
- Copper
- Packaging :
- Bulk
- Stud Diameter :
- 4.17 mm
- Heavy Duty :
- No
- Pbfree Code :
- yes
- Terminal Type :
- Circular
- Insulation :
- Non-Insulated
- Series :
- Budget
- Stud Size :
- M4
- Tongue Thickness :
- 510μm
- Width - Outer Edges :
- 0.250 6.35mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Wire Gauge (Max) :
- 22 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Published :
- 2012
- Datasheets
- 32859-1
