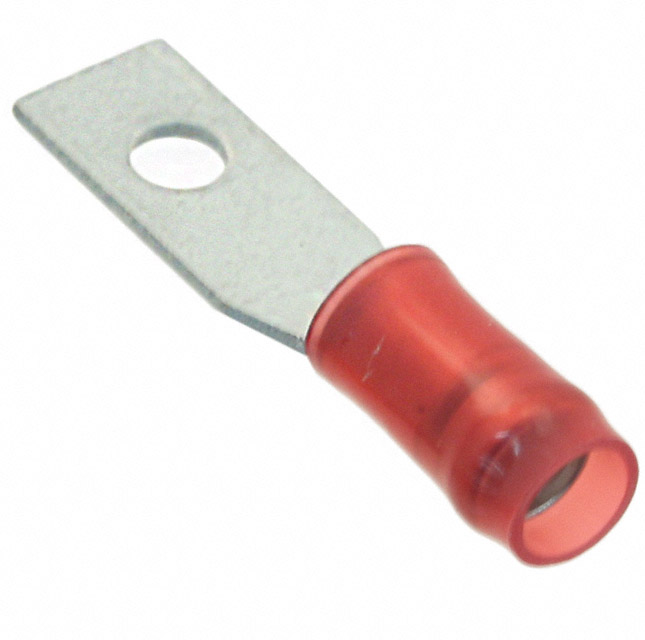

327962
Or copy the link below:
- Mfr.Part #
- 327962
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM RECT TONG 16-22 AWG #4
- Stock
- 13,154
- In Stock ：
- 13,154
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connectors
- Wire Gauge (Min) :
- 22 AWG
- Length - Overall :
- 1.015 25.78mm
- Number of Holes :
- 1
- Diameter - Ring ID :
- 0.119 (3.02mm)
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Insulated Wire Support :
- yes
- Mount :
- Free Hanging
- Insulation :
- Insulated
- ELV :
- Compliant
- Wire Gauge :
- 16-22 AWG
- Lead Free :
- Not Applicable
- Tongue Thickness :
- 1.02mm
- HTS Code :
- 8536.90.40.00
- Series :
- PIDG
- Insulation Material :
- Nylon
- Heavy Duty :
- No
- Terminal Style :
- Single Stud Hole
- Feature :
- Serrated Termination
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- FEMALE
- Width :
- 6.02mm
- Stud Size :
- M2.5
- Width - Outer Edges :
- 0.237 6.02mm
- Voltage - Rated AC :
- 300V
- Wire Gauge (Max) :
- 16 AWG
- Tab Thickness :
- 0.031 0.79mm
- Mounting Type :
- Free Hanging (In-Line)
- Insulation Diameter :
- 5.84 mm
- Termination :
- Crimp
- Wire/Cable Diameter :
- 3.5897 mm
- Stud/Tab Size :
- 4 Stud
- Contact Finish :
- Tin
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Terminal and Terminal Block Type :
- TAB TERMINAL
- Factory Lead Time :
- 14 Weeks
- Stud Diameter :
- 3.0226 mm
- Length :
- 25.781mm
- Published :
- 1997
- Color :
- Red
- Terminal Type :
- Rectangular Tongue
- Contact Material :
- Copper
- Datasheets
- 327962
327962 datasheet pdf and Terminals - Rectangular Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
