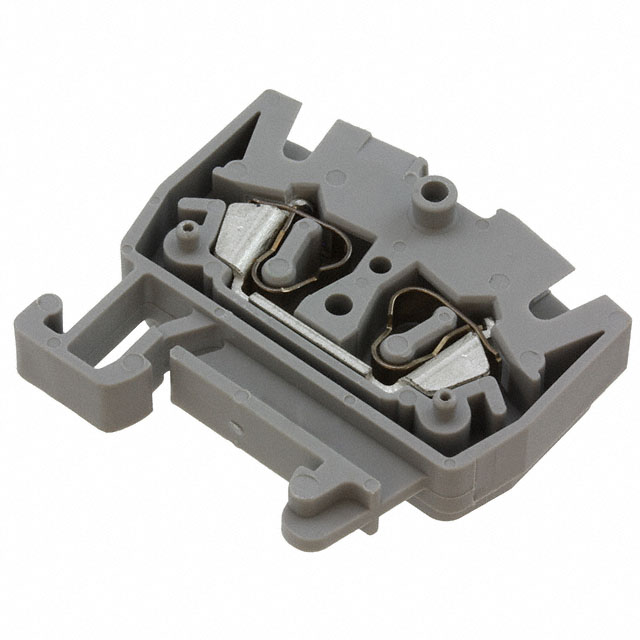

3244012

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Number of Rows :

1

Voltage :

600V

Current :

20A

Number of Ways :

2

Safety Approval :

CB; CSA; CUL; GOST; UL; VDE

Published :

2011

RoHS Status :

RoHS Compliant

Stripping Length :

8mm

Termination Style :

Push In, Spring

Width :

5.2mm

Series :

CLIPLINE ST

Material Flammability Rating :

UL94 V-0

Current Rating :

24A

Lead Free :

Lead Free

Voltage - IEC :

800V

Wire Gauge or Range - AWG :

12-28 AWG

Wire Gauge or Range - mm² :

0.08-4mm2

Contact Material :

Copper

Max Operating Temperature :

130°C

Voltage - Rated :

800V

Factory Lead Time :

11 Weeks

Flammability Rating :

UL94 V-0

Additional Feature :

PA, UL 94V-0

Number of Positions :

2

Number of Levels :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

22mm

ECCN Code :

EAR99

Wire Gauge (Min) :

28 AWG

Material - Insulation :

Polyamide (PA), Nylon

Length :

32mm

Max Current Rating :

24A

Color :

Gray

HTS Code :

8536.69.40.40

Type :

Feed Through

Fastening Method :

SPRING LOADED

Pbfree Code :

yes

Min Operating Temperature :

-60°C

Mount :

Through Hole

Number of Decks :

1

Wire Gauge (Max) :

28 AWG
