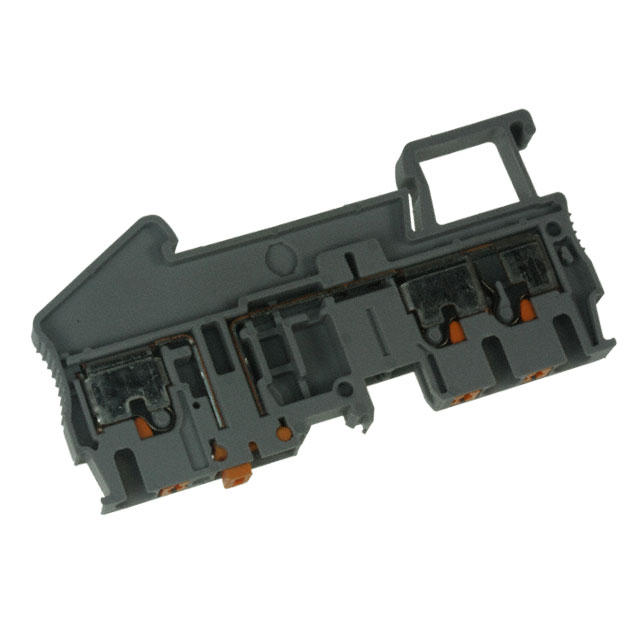

3210169

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Approval Agency :

CSA, UL

Voltage - IEC :

400V

Type :

Disconnect

Stripping Length :

10mm

Termination Style :

Push In, Spring

Length :

74mm

RoHS Status :

RoHS Compliant

Safety Approval :

UL; CSA

Number of Levels :

1

ECCN Code :

EAR99

Wire Cross Section :

4 mm2

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Number of Decks :

1

Current Rating :

20A

Termination :

Push-In

Disconnect Type :

Switch, Knife

Factory Lead Time :

4 Weeks

Number of Ways :

3

Number of Rows :

1

Wire/Cable Gauge :

12 AWG

Material - Insulation :

Polyamide (PA), Nylon

Voltage - Rated :

400V

Current :

20A

Pbfree Code :

yes

Color :

Gray

Number of Positions :

3

Voltage :

300V

Width :

5.2mm

Wire Gauge or Range - AWG :

12-26 AWG

Wire Gauge (Max) :

26 AWG

Wire Gauge (Min) :

26 AWG

Moisture Sensitivity Level (MSL) :

Not Applicable

Additional Feature :

STANDARD: UL 94V-0, PA

Max Current Rating :

20A

Series :

CLIPLINE PT

Published :

2010

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0
