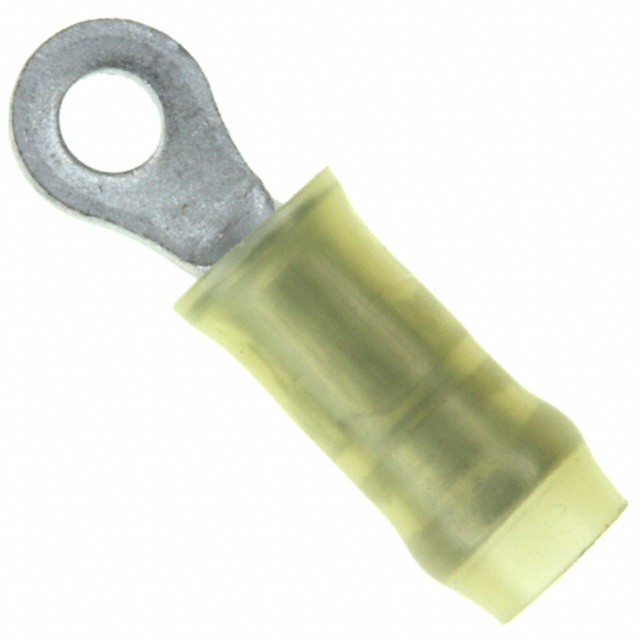

321013
Or copy the link below:
- Mfr.Part #
- 321013
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 22-26AWG #0 CRIMP
- Stock
- 4,608
- In Stock ：
- 4,608
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Packaging :
- Bulk
- Length :
- 13.36mm
- Published :
- 2009
- Contact Finish :
- Tin
- Contact Plating :
- Tin
- Wire Gauge :
- 22-26 AWG
- Voltage - Rated AC :
- 300V
- Series :
- PIDG
- Material :
- Copper
- Stud/Tab Size :
- 0 Stud
- Tongue Thickness :
- 500μm
- Insulation :
- Insulated
- Thickness :
- 0.018 0.46mm
- Max Operating Temperature :
- 105°C
- Gender :
- FEMALE
- Sealable :
- No
- Mounting Type :
- Free Hanging (In-Line)
- ELV :
- Compliant
- Number of Holes :
- 1
- Contact Material :
- Copper
- Voltage - Rated DC :
- 300V
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Feature :
- Serrated Termination
- Terminal Type :
- Circular
- Width - Outer Edges :
- 0.140 3.56mm
- Lead Free :
- Lead Free
- Color :
- Yellow
- Heavy Duty :
- No
- Length - Overall :
- 0.525 13.34mm
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 26 AWG
- Insulated Wire Support :
- yes
- REACH SVHC :
- No SVHC
- Wire/Cable Gauge :
- 26 AWG
- Min Operating Temperature :
- -40°C
- Termination :
- Crimp
- Factory Lead Time :
- 14 Weeks
- Mount :
- Stud
- Government Qualified :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Material - Insulation :
- Polyamide (PA), Nylon
- Plating :
- Tin
- Stud Diameter :
- 3.5052 mm
- Insulation Diameter :
- 0.050 ~ 0.082 (1.27mm ~ 2.08mm)
- Wire Gauge (Max) :
- 22 AWG
- Datasheets
- 321013
