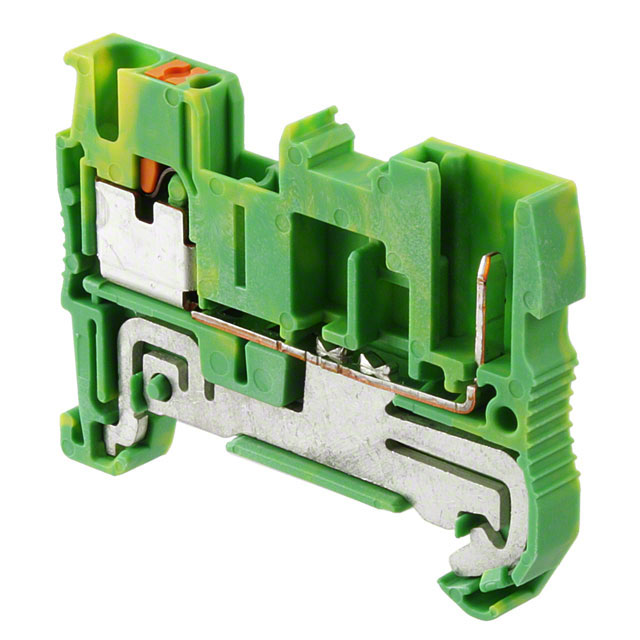

3210059

Manufacturer :

Phoenix Contact

Product Category :

Specialized

Width :

5.2mm

Approval Agency :

CSA, UL

Material Flammability Rating :

UL94 V-0

Mounting Type :

DIN Rail

Color :

Green, Yellow

Number of Levels :

1

HTS Code :

8536.69.40.40

Number of Rows :

1

Published :

2012

Flammability Rating :

UL94 V-0

Wire/Cable Gauge :

12 AWG

Length :

1.909 48.50mm

RoHS Status :

RoHS Compliant

Series :

CLIPLINE PT

Termination :

PLUG

Wire Gauge (Max) :

26 AWG

Additional Feature :

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL

Depth :

5.2mm

Connector Type :

Push-In

Factory Lead Time :

4 Weeks

Number of Positions :

2

Stripping Length :

10mm

Type :

Plug Connection

Safety Approval :

ABS; BV; CSA; CUL; GL; LR; NK

Housing Color :

Green, Yellow

Wire Gauge or Range - AWG :

12-26 AWG

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

DIN Rail

Termination Style :

Plug Receptacles, Push In, Spring

Number of Decks :

1

Number of Ways :

2

Height :

43.9928mm

Housing Material :

Polyamide

Wire Gauge or Range - mm² :

0.14-0.75mm²

Wire Gauge (Min) :

12 AWG

Material - Insulation :

Polyamide (PA), Nylon
