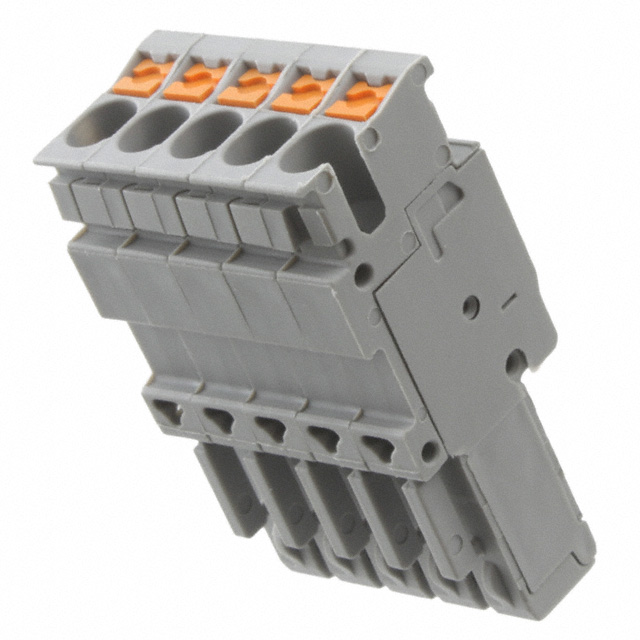

3209905
Or copy the link below:
- Mfr.Part #
- 3209905
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 5POS STR
- Stock
- 24
- In Stock ：
- 24
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Plug Wire Entry :
- 180°
- Current :
- 20A
- Factory Lead Time :
- 4 Weeks
- Published :
- 2017
- Wire Gauge or Range - mm² :
- 1.5 ~ 2.5mm2
- Color :
- Gray
- Mounting Type :
- Free Hanging (In-Line)
- Voltage :
- 300V
- Voltage - Rated :
- 6kV
- Number of Levels :
- 1
- Wire Gauge (Min) :
- 12 AWG
- Current Rating :
- 24A
- Wire/Cable Gauge :
- 12 AWG
- Width :
- 26mm
- Type :
- Plug, Female Sockets
- Insulation Height :
- 1.535 39.00mm
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Straight
- Number of Contacts :
- 5
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Cable, Free Hanging
- RoHS Status :
- RoHS Compliant
- Voltage - IEC :
- 500V
- ECCN Code :
- EAR99
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Termination Style :
- Screwless - Push-In Spring
- Series :
- CLIPLINE COMBI PP-H
- Termination :
- Screwless
- Housing Material :
- Polyamide (PA), Nylon
- Wire Strip Length :
- 10mm
- Packaging :
- Bulk
- Wire Gauge (Max) :
- 26 AWG
- Height :
- 39mm
- Length :
- 15.8mm
- Number of Positions :
- 5
- Max Current Rating :
- 24A
- Datasheets
- 3209905
Bulk Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets CLIPLINE COMBI PP-H Polyamide (PA), Nylon
3209905 Overview
The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the CLIPLINE COMBI PP-H Series, it belongs to the range of products of that series.Cable, Free Hanging represents the mounting point for the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
3209905 Features
CLIPLINE COMBI PP-H series
3209905 Applications
There are a lot of Phoenix Contact
3209905 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
