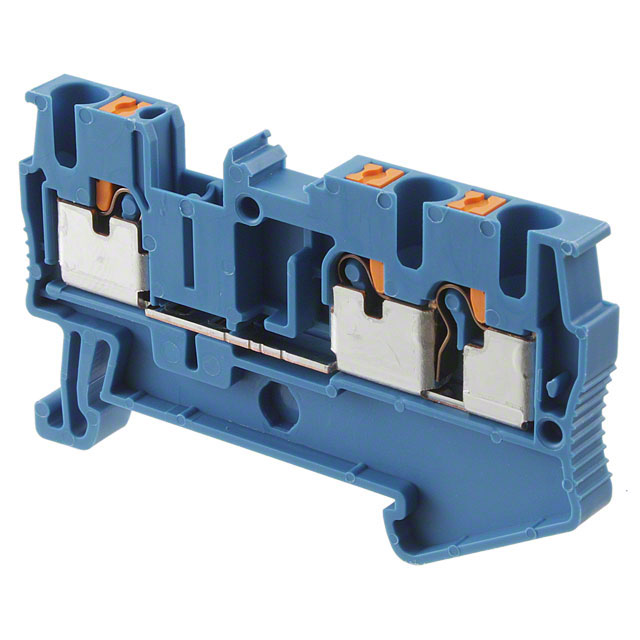

3209552
Or copy the link below:
- Mfr.Part #
- 3209552
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM BLK FEED THRU 12-26AWG
- Stock
- 25,765
- In Stock ：
- 25,765
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Din Rail, Channel
- Approval Agency :
- CB, CSA, UL, VDE
- Number of Rows :
- 1
- Termination :
- Push-In
- Number of Ways :
- 3
- Series :
- CLIPLINE PT
- Number of Levels :
- 1
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 3
- Wire Cross Section :
- 4 mm2
- Color :
- Blue
- Stripping Length :
- 10mm
- Wire Gauge or Range - mm² :
- 1.5 ~ 2.5mm2
- Voltage - Rated :
- 800V
- Factory Lead Time :
- 7 Weeks
- Voltage :
- 600V
- Current Rating :
- 24A
- Published :
- 2010
- Wire Gauge (Min) :
- 26 AWG
- Lead Free :
- Lead Free
- Additional Feature :
- STANDARD: UL 94V-0, PA, SAFETY APPROVAL: DNVGL; EAC; EACEX; IECEX; LR; NK; UL; VDE
- Housing Material :
- Polyamide
- Material - Insulation :
- Polyamide (PA), Nylon
- Current - IEC :
- 24A
- Current :
- 20A
- ECCN Code :
- EAR99
- Height :
- 36.5mm
- Width :
- 5.2mm
- Wire/Cable Gauge :
- 12 AWG
- Length :
- 60.5mm
- Type :
- Feed Through
- Voltage - IEC :
- 800V
- Pbfree Code :
- yes
- Termination Style :
- Push In, Spring
- Wire Gauge (Max) :
- 26 AWG
- Number of Decks :
- 1
- Safety Approval :
- ABS; ATEX; BV; CB; CSA; CUL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Datasheets
- 3209552
3209552 datasheet pdf and Terminal Blocks - Din Rail, Channel product details from Phoenix Contact stock available at Xinshop
