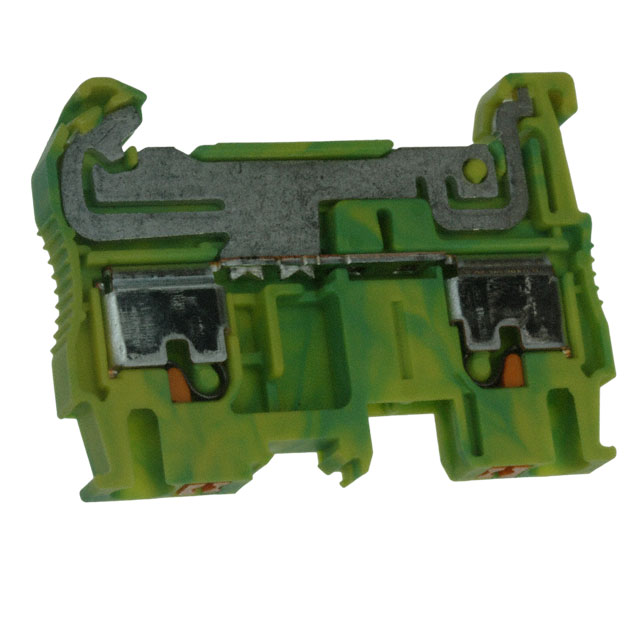

3209536

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Safety Approval :

UL; CSA

Factory Lead Time :

7 Weeks

Wire Gauge (Max) :

26 AWG

Lead Free :

Lead Free

Housing Material :

Polyamide

ECCN Code :

EAR99

Length :

48.5mm

Number of Decks :

1

Wire Gauge or Range - AWG :

12-26 AWG

Additional Feature :

STANDARD: UL 94V-0, PA

Number of Levels :

1

Pbfree Code :

yes

Connector Type :

Push-In

Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Series :

CLIPLINE PT

Published :

2010

HTS Code :

8536.69.40.40

Termination Style :

Push In, Spring

Color :

Green, Yellow

Number of Poles :

2

Number of Rows :

1

Wire Gauge (Min) :

26 AWG

Number of Ways :

2

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Height :

44mm

Approval Agency :

CB, CSA, UL, VDE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Width :

5.2mm

Stripping Length :

10mm

Material Flammability Rating :

UL94 V-0

Wire/Cable Gauge :

12 AWG

Material - Insulation :

Polyamide (PA), Nylon

Type :

Ground, Earth
