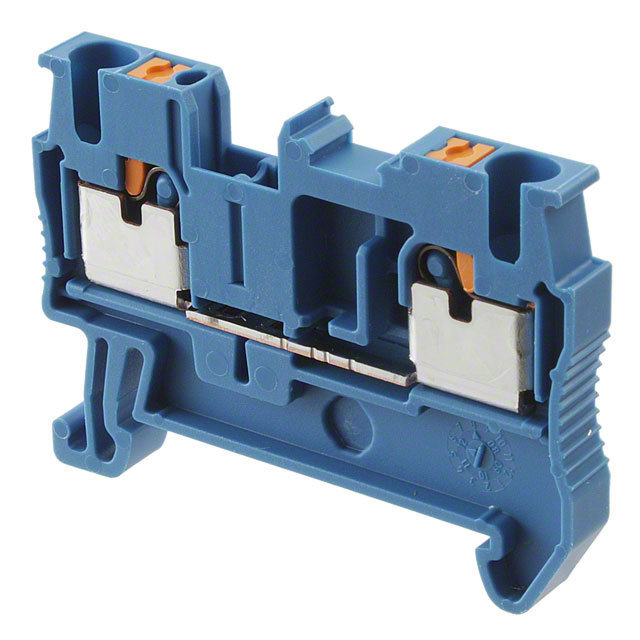

3209523

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Factory Lead Time :

7 Weeks

Lead Free :

Lead Free

Wire/Cable Gauge :

12 AWG

Height :

36.5mm

Wire Gauge (Min) :

12 AWG

Approval Agency :

CB, CSA, UL, VDE

Material Flammability Rating :

UL94 V-0

Number of Decks :

1

Current Rating :

24A

Length :

48.5mm

Wire Gauge or Range - mm² :

1.5 ~ 2.5mm2

Number of Ways :

2

Wire Gauge or Range - AWG :

12-26 AWG

Series :

CLIPLINE PT

Voltage - IEC :

800V

Type :

Feed Through

HTS Code :

8536.69.40.40

Width :

5.2mm

Current - IEC :

24A

Current :

20A

Number of Positions :

2

Safety Approval :

UL; CSA

Published :

2010

Stripping Length :

10mm

Pbfree Code :

yes

Voltage - Rated :

800V

Number of Levels :

1

ECCN Code :

EAR99

Housing Material :

Polyamide

Termination :

Push-In

Material - Insulation :

Polyamide (PA), Nylon

Flammability Rating :

UL94 V-0

Number of Rows :

1

Voltage :

600V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

STANDARD: UL 94V-0, PA

RoHS Status :

RoHS Compliant

Color :

Blue

Termination Style :

Push In, Spring

Wire Gauge (Max) :

26 AWG
