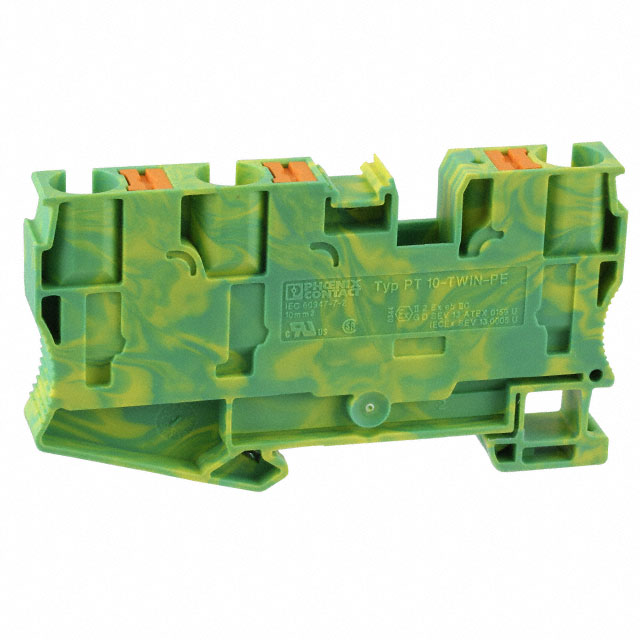

3208745

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Termination Style :

Push In, Spring

Series :

CLIPLINE PT

Current Rating :

57A

Number of Rows :

1

Wire Gauge (Min) :

20 AWG

Published :

2015

Number of Levels :

1

Height :

49.5mm

Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.5-16mm2

Material - Insulation :

Polyamide (PA), Nylon

Type :

Ground, Earth

RoHS Status :

RoHS Compliant

Width :

10.2mm

Weight :

44.18001g

Stripping Length :

18mm

Factory Lead Time :

11 Weeks

Housing Material :

Nylon

Number of Ways :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Safety Approval :

ABS; ATEX; BV; CB; CSA; CUL

Additional Feature :

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: EAC; DNVGL; IEC; LR; NK; PRS; UL; VDE

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

6-20 AWG

Number of Positions :

3

Connector Type :

Push-In

Wire Gauge (Max) :

20 AWG

Length :

88.9mm

Max Current Rating :

57A

ECCN Code :

EAR99

Wire/Cable Gauge :

16 AWG

Color :

Green, Yellow

Number of Decks :

1
