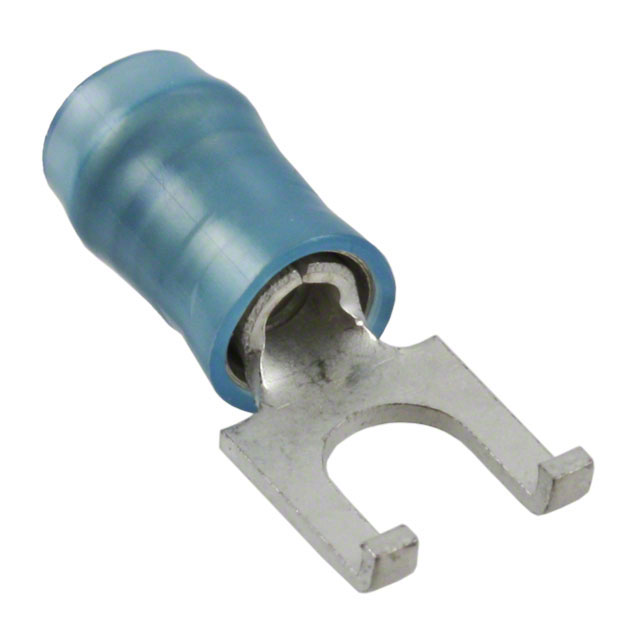

320862
Or copy the link below:
- Mfr.Part #
- 320862
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #8 BLU
- Stock
- 9,412
- In Stock ：
- 9,412
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Stud Size :
- M4
- Tongue Thickness :
- 840μm
- Depth :
- 7.47mm
- Wire/Cable Diameter :
- 4.318 mm
- Insulation Diameter :
- 0.115 ~ 0.170 (2.92mm ~ 4.32mm)
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Thickness :
- 840μm
- Voltage - Rated :
- 300V
- Terminal Type :
- Flanged
- Factory Lead Time :
- 12 Weeks
- Mount :
- Free Hanging
- HTS Code :
- 8536.90.40.00
- REACH SVHC :
- Unknown
- ECCN Code :
- EAR99
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Length - Overall :
- 0.768 19.51mm
- Wire Gauge (Max) :
- 16 AWG
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Tin
- Wire Gauge :
- 14-16 AWG
- Stud/Tab Size :
- 8 Stud
- Heavy Duty :
- No
- Termination :
- Crimp
- Gender :
- FEMALE
- Feature :
- Serrated Termination
- Pbfree Code :
- yes
- Length - Termination :
- 0.404 10.26mm
- Lead Free :
- Lead Free
- Insulated Wire Support :
- yes
- Insulation :
- Insulated
- Color :
- Blue
- Published :
- 1997
- Material - Insulation :
- Polyamide (PA), Nylon
- Stud Diameter :
- 4.17 mm
- Length - Ring Center to Termination :
- 0.203 5.16mm
- ELV :
- Compliant
- Packaging :
- Bulk
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Copper
- Width :
- 7.48mm
- Orientation :
- Straight
- Width - Outer Edges :
- 0.294 7.47mm
- Wire Gauge (Min) :
- 14 AWG
- Material Thickness :
- 790μm
- Tongue Inside Opening :
- 0.171 (4.34mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 18.72mm
- Series :
- PIDG
- Datasheets
- 320862
320862 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
