320861
Or copy the link below:
- Mfr.Part #
- 320861
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description

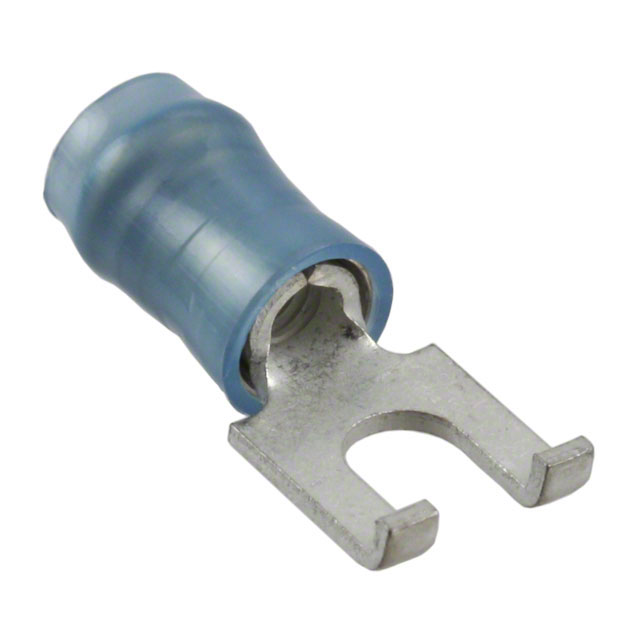

- CONN SPADE TERM 14-16AWG #6 BLU
- Stock
- 5,263
- In Stock ：
- 5,263
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Depth :
- 6.2mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Insulated Wire Support :
- yes
- Wire Gauge (Min) :
- 16 AWG
- Insulation Diameter :
- 0.115 ~ 0.170 (2.92mm ~ 4.32mm)
- Factory Lead Time :
- 4 Weeks
- Length - Termination :
- 0.404 10.26mm
- Mounting Type :
- Free Hanging (In-Line)
- REACH SVHC :
- Unknown
- Tongue Inside Opening :
- 0.145 (3.68mm)
- Tongue Thickness :
- 840μm
- HTS Code :
- 8536.90.40.00
- Length :
- 18.7198mm
- ELV :
- Compliant
- Contact Material :
- Copper
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Color :
- Blue
- Gender :
- FEMALE
- Wire Gauge :
- 14-16 AWG
- Mount :
- Free Hanging
- Voltage - Rated AC :
- 300V
- Contact Plating :
- Tin
- Material Thickness :
- 787.4μm
- ECCN Code :
- EAR99
- Termination :
- Crimp
- Heavy Duty :
- No
- Material - Insulation :
- Polyamide (PA), Nylon
- Stud Size :
- M3.5
- Length - Ring Center to Termination :
- 0.203 5.16mm
- Pbfree Code :
- yes
- Feature :
- Serrated Termination
- Orientation :
- Straight
- Wire Gauge (Max) :
- 14 AWG
- Length - Overall :
- 0.768 19.51mm
- Terminal Type :
- Flanged
- Published :
- 1997
- Width :
- 6.2mm
- Packaging :
- Bulk
- Stud/Tab Size :
- 6 Stud
- Width - Outer Edges :
- 0.294 7.47mm
- Stud Diameter :
- 3.5052 mm
- Insulation :
- Insulated
- Wire/Cable Diameter :
- 4.318 mm
- Series :
- PIDG
- Lead Free :
- Not Applicable
- RoHS Status :
- RoHS Compliant
- Datasheets
- 320861
