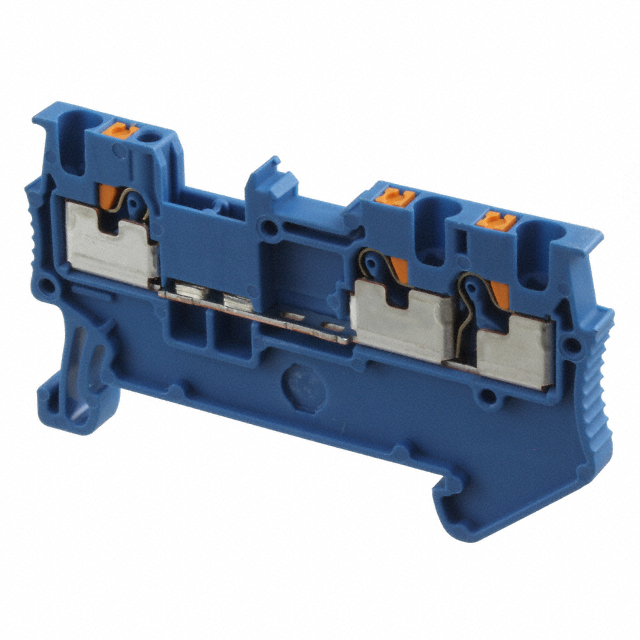

3208168

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Current Rating :

17.5A

Material - Insulation :

Polyamide (PA), Nylon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge or Range - AWG :

14-26 AWG

Number of Rows :

1

Additional Feature :

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: IEC; LR; UL; VDE

Safety Approval :

ATEX; CB; CSA; CUL; GOST; GL

Material Flammability Rating :

UL94 V-0

Wire Gauge (Min) :

14 AWG

Number of Ways :

3

Series :

CLIPLINE PT

Stripping Length :

8mm

Published :

2013

Termination :

Push-In

Approval Agency :

CB, CSA, UL, VDE

Flammability Rating :

UL94 V-0

Length :

54mm

Termination Style :

Push In, Spring

Number of Levels :

1

Number of Positions :

3

Current :

5A

Voltage - IEC :

500V

Number of Decks :

1

RoHS Status :

RoHS Compliant

Reach Compliance Code :

Unknown

Wire Gauge or Range - mm² :

0.14-1.5mm2

Color :

Blue

Width :

3.5mm

Mount :

Through Hole

ECCN Code :

EAR99

Type :

Feed Through

Wire Gauge (Max) :

26 AWG

Wire/Cable Gauge :

16 AWG

Voltage :

600V

Factory Lead Time :

4 Weeks

Voltage - Rated :

500V

Height :

39.5mm

Current - IEC :

17.5A
