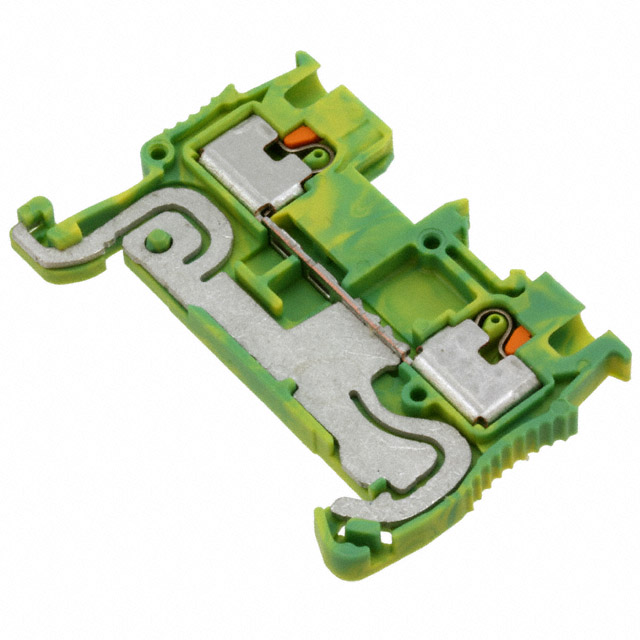

3208139

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Flammability Rating :

UL94 V-0

Additional Feature :

STANDARD: UL 94V-0, PA, SAFETY APPROVAL: LR; NK; UL; VDE

Wire Gauge (Min) :

14 AWG

Wire Gauge or Range - mm² :

0.14-1.5mm2

Wire Gauge (Max) :

26 AWG

Number of Rows :

1

Published :

2012

Wire/Cable Gauge :

14 AWG

Termination :

PLUG

Series :

CLIPLINE PT

Termination Style :

Push In, Spring

Width :

3.5mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Length :

45mm

Type :

Ground, Earth

Wire Gauge or Range - AWG :

14-26 AWG

RoHS Status :

RoHS Compliant

Number of Levels :

1

Material - Insulation :

Polyamide (PA), Nylon

Color :

Green, Yellow

Number of Ways :

2

Number of Decks :

1

Stripping Length :

8mm

Number of Positions :

2

Factory Lead Time :

4 Weeks

Height :

39.5mm

Packaging :

Bulk

Connector Type :

Push-In

HTS Code :

8536.69.40.40

Safety Approval :

ATEX; CB; CSA; CUL; GL; IEC
