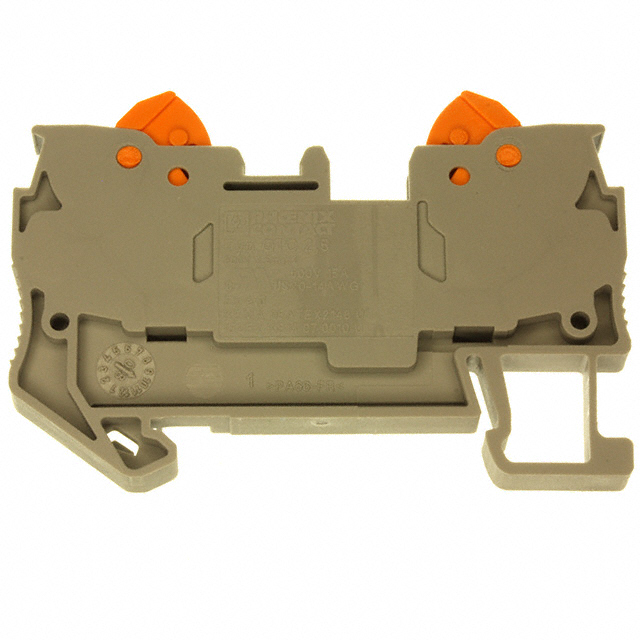

3206416

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Height :

39.3mm

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

12 Weeks

Color :

Gray

Max Supply Voltage :

800V

Material - Insulation :

Polyamide (PA), Nylon

Termination Style :

IDC

Number of Poles :

2

Number of Decks :

1

Length :

62.6mm

Published :

2006

Safety Approval :

ABS; BV; CSA; CUL; DNV; GL; UL

Wire Gauge (Max) :

20 AWG

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Lead Pitch :

6.2mm

Depth :

6.2mm

Number of Ways :

2

Width :

6.2mm

Series :

CLIPLINE QTC

Packaging :

Bulk

Mount :

Through Hole

Wire/Cable Gauge :

14 AWG

Number of Rows :

1

Voltage :

600V

Weight :

10.469989g

Approval Agency :

CSA, UL, cULus

Current :

15A

Voltage - Rated DC :

800V

Moisture Sensitivity Level (MSL) :

Not Applicable

Max Current Rating :

24A

Wire Gauge or Range - AWG :

14-20 AWG

Voltage - Rated AC :

800V

Wire Gauge or Range - mm² :

0.5-2.5mm2

ECCN Code :

EAR99

Type :

Feed Through

Current Rating :

24A

Reach Compliance Code :

Unknown

Additional Feature :

PA, UL 94V-0

Number of Levels :

1

RoHS Status :

RoHS Compliant

Housing Material :

Polyamide

Orientation :

Straight

Wire Gauge (Min) :

14 AWG
