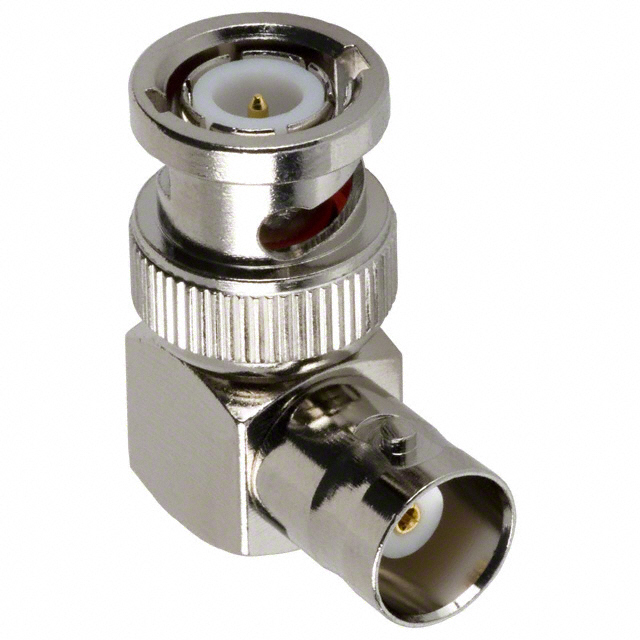

31-9-RFX

Share

Or copy the link below:

Mfr.Part #
31-9-RFX
Manufacturer
Amphenol RF
Package / Case
Datasheet
Download
Description
CONN ADAPT PLUG TO JACK BNC
Stock
258
In Stock :
258

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Amphenol RF
Product Category :
Coaxial Connector (RF) Adapters
Body Finish :
Nickel
Conversion Type :
Same Series
Width :
50.8mm
Packaging :
Bulk
MIL Conformance :
No
Impedance :
50Ohm
Adapter Type :
Plug to Jack
Operating Temperature :
-65°C~165°C
Center Contact Plating :
Gold
Style :
RIGHT ANGLE
Gender Type A :
Male
DIN Conformance :
No
REACH SVHC :
Unknown
Mount :
Free Hanging
Orientation :
RIGHT ANGLE
Length :
27mm
Filter Feature :
No
Mounting Type :
Free Hanging (In-Line), Right Angle
Additional Feature :
INSERTION LOSS MAX AT 3GHZ, VSWR MAX AT 4GHZ
Option :
GENERAL PURPOSE
Weight :
21.091989g
VSWR :
1.35
Convert From (Adapter End) :
BNC Plug, Male Pin
Fastening Type :
Bayonet Lock, Bayonet Lock
Gender Type B :
FEMALE
IEC Conformance :
No
Center Contact Material :
Beryllium Copper; Brass
Mating Cycles :
500
Adapter Series :
BNC to BNC
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Insertion Loss :
0.2 dB
Depth :
14.3mm
Body Material :
Brass
Center Gender :
Female to Male
Radiation Hardening :
No
Height :
15.875mm
Resistance :
50Ohm
Contact Material :
Brass, Copper
Frequency :
4GHz
Insulation Material :
TEFLON
Lead Free :
Lead Free
Published :
2001
Convert To (Adapter End) :
BNC Jack, Female Socket
Dielectric Material :
Polytetrafluoroethylene (PTFE)
Connector Type :
BNC, Coaxial
Factory Lead Time :
10 Weeks
RoHS Status :
RoHS Compliant
Datasheets
31-9-RFX
Introducing Coaxial Connector (RF) Adapters Amphenol RF 31-9-RFX from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~165°C, Mounting Type:Free Hanging (In-Line), Right Angle, 31-9-RFX pinout, 31-9-RFX datasheet PDF, 31-9-RFX amp .Beyond Coaxial Connector (RF) Adapters Amphenol RF 31-9-RFX ,we also offer 112437, 112443, 031-4803-RFX, Our vast inventory has you covered. Contact us now for immediate solutions.

Amphenol RF 31-9-RFX


31-9-RFX datasheet pdf and Coaxial Connectors (RF) - Adapters product details from Amphenol RF stock available at Xinshop
